Jet JT9-104040 BLVS100-070 1T Electric Hoist 70′ Lift 1PH
Jet JT9-104040 Description
JET Trademaster Series Electric Hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. With its market leading wireless controller and 2in. 1 mechanical brake and overload slip clutch, safety is most important. With the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster Series comes in 1/8Ton to 2Ton capacities and standard lifts of 10 and 20ft. (custom lifts up to 100ft. are available).
Jet JT9-104040 Includes
- (1) 1-Ton Electric Hoist
Jet JT9-104040 Features

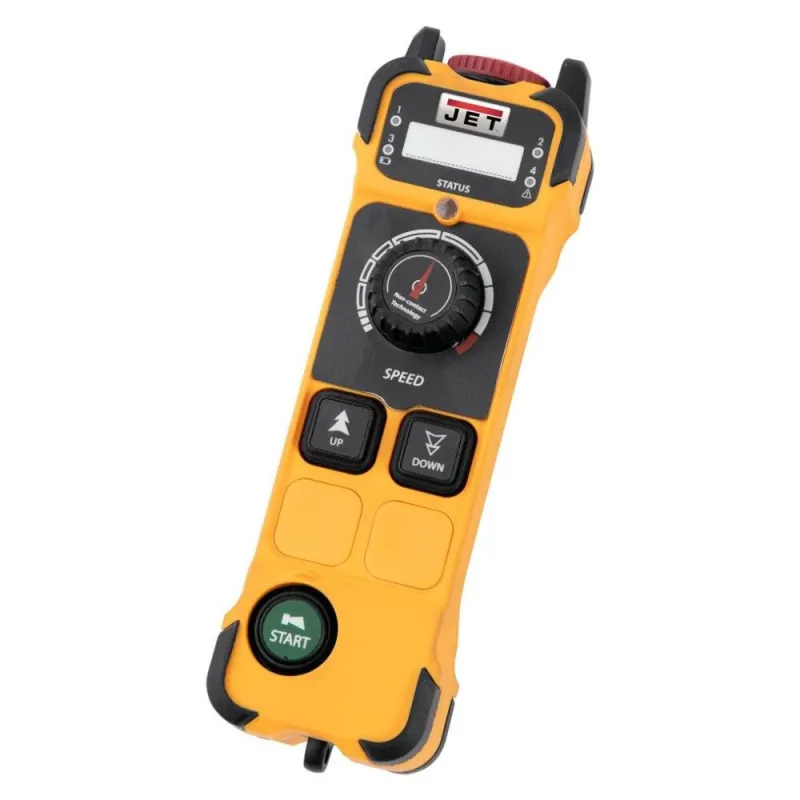

- Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4ft/min with speed dial and max of 41ft/min in high speed
- Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp.
- Overload protection using slip clutch system to protect hoist from loads over rated capacities
- Hoist carries a dust and moisture rating of IP-55 and the wireless transmitter IP-65 which means hoist can stay in the light rain and pendant is dust and water proof.
- DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs
- TAA Approved
Jet JT9-104040 Specifications
| Capacity | 2000 lbs |
| Lift Height | 70′ |
| Lift Speed | 18.4 ft./min. |
| Duty Cycle | 30% |
| Voltage | 115V |
| Brake Type | Disc |

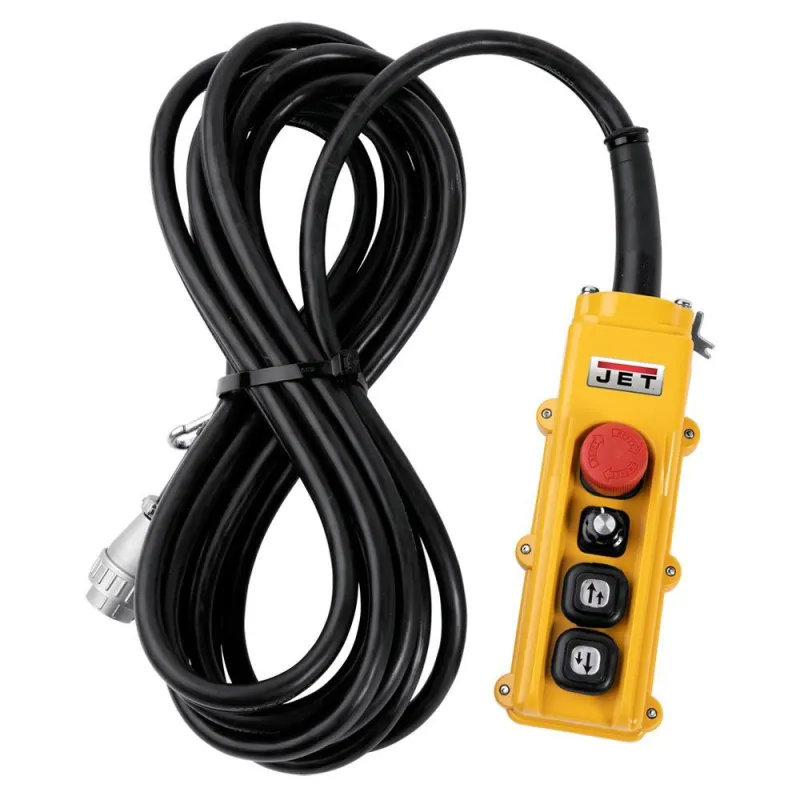

| Control Type | Push Button |
| Chain Bag Included | Yes |
| Required Head Room | 20.7″ |
| Watts | 1000 |
| Motor Output | 1.34 HP |
| Thermal Overload Protection | Yes |
| Hoist Classification | H3 |
