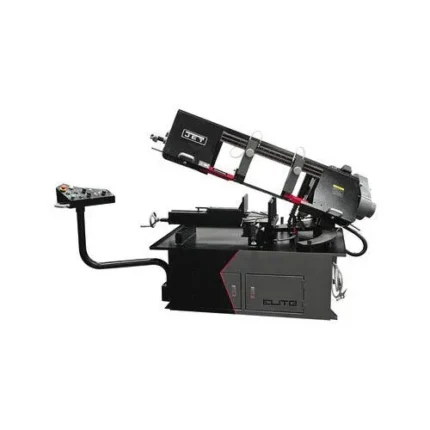

Jet Elite JT9-891015 EHB-8VS, 8 x 13 Variable Speed Bandsaw
Jet 891015 Description
A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with variable speed. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.
Jet 891015 Includes
- (1) EHB-8VS, 8 x 13 Variable Speed Bandsaw
Jet 891015 Features
- The Elite swing away panel reloates saw controls to a single location, offering finger-tip operation of most major saw functions.
- For added safety, the EHB-8VS Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group

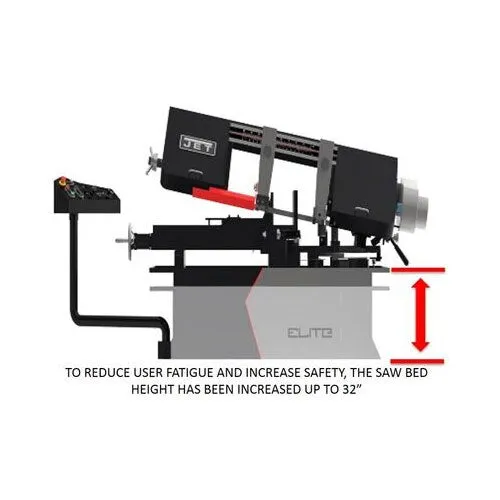

- To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 32 in.
- Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extendes blade life
- Number of Spindle Speeds: Variable speed drivetrain allows operator to fine tune the blade speed fast and easily
- Integrated pressurized wash hose for easy machine cleaning
- Quick positioning vise for clamping of materials
- Large handwheel with blade tensioning gauge acurately measures blade pressure
- Automatic blade shut off switch stops the sawing process
- Hydraulic downfeed control is easily adjusted enabling feed feed rates to evolve with the variaous types of materials
Jet 891015 Specifications
| Width | 28.5 |
| Blade Length (In.) | 114-1/2 |
| Rectangle at 45 Degrees (In.) | 8 x 8 or 2 x 9-1/2 |
| Rectangle at 90 Degrees (In.) | 13 x 5-1/4 / 13-1/4 x 2 |
| Square at 45 Degrees (In.) | 8 x 8 |
| Drive | Variable Speed |
| Blade Speeds (SFPM) | 82 – 310 |
| Cutting Capacity (W x D) (In.) | 8 x 13 |
| Weight (Lbs.) | 770 |
| Round at 90 Degrees (In.) | 8 |
| Overall Dimensions (in) | 62-1/2 x 23 x 48 |
| Vise Swivels (Deg.) | 45 |
| Motor (HP) | 1-1/2 HP, 115/230V, 1Ph |
| Blade Wheel Diameter (In.) | 11-5/8 |
| Blade Size (In.) | 1 x .035 x 114-1/2 |
| Round at 45 Degrees (In.) | 8 |
| Bed Height (In.) | 32 |
| Square at 90 Degrees (In.) | 8 x 8 |
| Amperage Draw @ 115V 1Ph | 23 |
| Amperage Draw @ 230V 1Ph | 11 |
