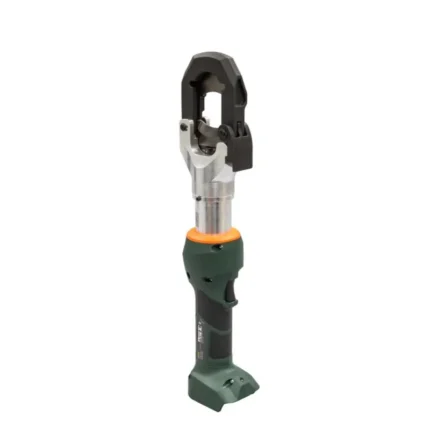

Greenlee EK6ATLX11 6 Ton Crimper Quad, Li-Ion, Standard, 120V
Greenlee EK6ATLX11 Description
Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.
Greenlee EK6ATLX11 Includes
- (1) 6 Ton Quad Point Crimper, Open Face
- (1) 120V Charger
- (2) 4.0 Ah Batteries
Greenlee EK6ATLX11 Features
- Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
- State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
- Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
- LED light provides the operator with the battery charge and tool maintenance status
- Two-stage hydraulic system provides fast advance and power speeds, saving time
- Forward handle position improves tool balance
- One trigger controls all tool functions
- Crimping head rotates 350°
- Tools automatically retract when the crimping cycle is complete
- Overmolded tacky grip areas make gripping the tool easier and more comfortable
- LED work light illuminates dark work areas
- Greenlee battery-powered crimping tools now use bio-degradable oil
- Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
- Utilizes four indentors to make the crimp
- Flip-top style uses a pull pin to open head for easy removal from the connector
- U.S. Patents #6,206,663 and #6,065,326
Greenlee EK6ATLX11 Specifications
| Sub Brand | Gator |
| Type | Dieless style crimper |
| Application | 6 Ton Crimping |
| Standard | C/US UL Listed |
| Wire Size | 6 AWG – 500 kcmil Cu, 6 AWG – 400 kcmil Al |
| Overall Length | 14 IN (355mm) |
| Crimping Force | 12,400 lbs. (55 kN) |
| Crimping Capacity | 500 kcmil (MCM) Copper, 400 kcmil (MCM) Al |
| Connector Type | Color-coded lugs and splices |
| Handle Type | Pistol Style with over molded rubber grip |
