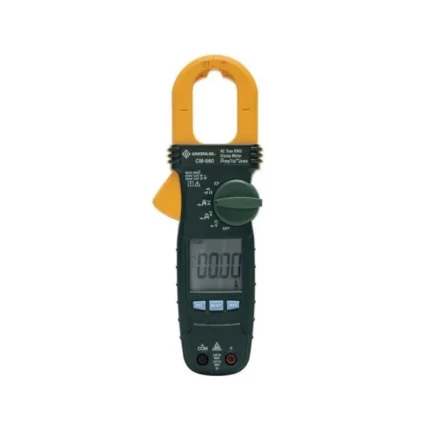

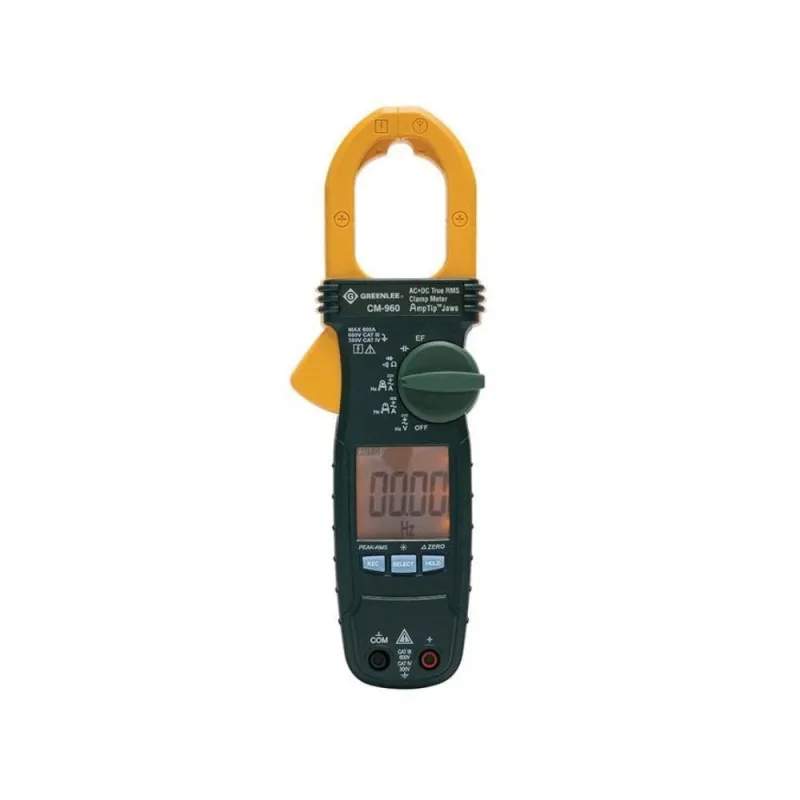

Greenlee CM-960-C 600 Amp AC & DC TRUE RMS Clamp Meter – Calibrated
Greenlee CM-960-C Includes
- (2) 1.5V AAA batteries
- Test leads
- Carrying case
Greenlee CM-960-C Features
- CM-960 Clamp meter with Certificate of Calibration
- Measures AC+DC current
- AC and AC+DC voltage measurements with digital low pass filter for accurate readings on variable frequency drives
- Also measures DC voltage, resistance, capacitance and frequency
- Tests continuity and diodes
- Peak-RMS measures motor inrush current
- Backlight & relative mode for added versatility
- AmpTip™ increases accuracy on small wires and low current
- Two voltage detection modes – non-contact or using a single test lead
- Data hold
- Recording of Maximum, Minimum, and Average readings
- Lifetime warranty
Greenlee CM-960-C Specifications
| Amperage Measurement | 60, 600 Amps AC+DC |
| Display | LCD, 6000 Count |
| Frequency Rating | Voltage and AmpTip™ current |
| Jaw Opening | 1.18″ (30 mm) |
| Measurement Category | CAT III 600V, CAT IV 300V |
| Replacement Part | TSG-3 test leads, TC-10 carrying case |
| Resistance Measurement | 600, 6k, 60k Ohms |
| Standard | CAT III, C/US UL Listed, CE |
| True Power | AC+DC True RMS |
| Voltage Measurement | 600 Volts AC+DC |
