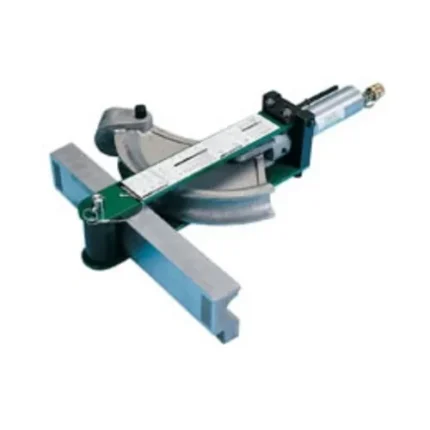

Greenlee 882CB Flip-Top Benders for 1-1/4″ – 2″ EMT, IMC and Rigid without Hydraulic Pump
Greenlee 882CB Specifications:
•Capacity: 1-1-4″, 1-1/2″ and 2″ EMT, IMC and Rigid
•Weight: 205 lbs. (93 kg)

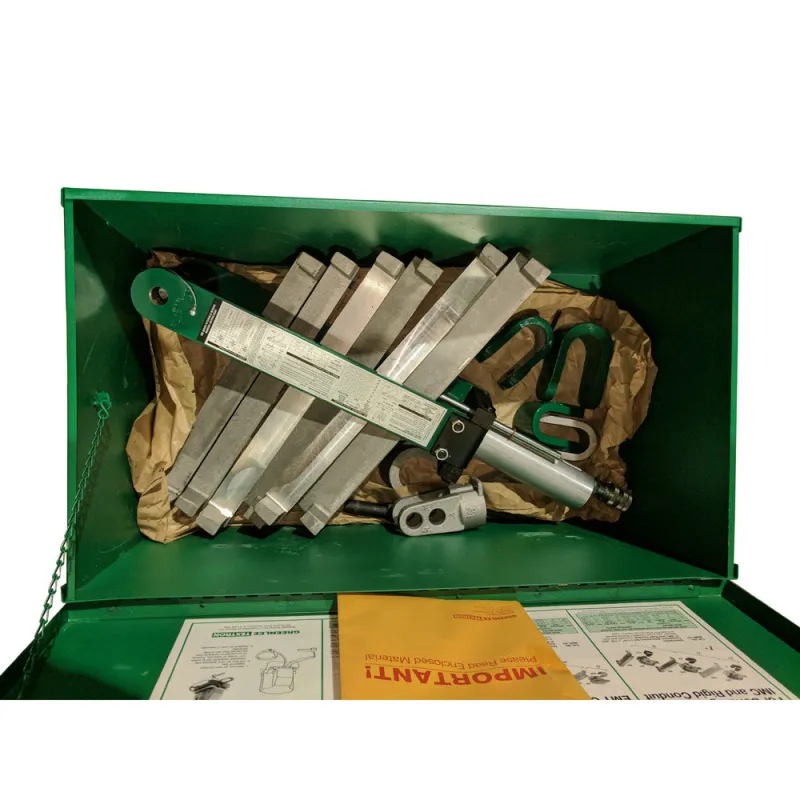

Greenlee 882CB Includes:
•1738 (15129) – Hydraulic Ram with 4018GB female quick coupler
•11289 – 3/8″ x 6′ (9.5 x 1829 mm) Hydraulic Hose with two 4033GB male quick couplers
•15145 – Yoke
•04086 – Yoke Pin
•16563 – Frame Unit
•15136 – Upper Connecting Plate Unit
•15135 – Lower Connecting Plate Unit
•15150 – Hinge Pin
•50283 – Retaining Ring (Qty. 2)
•38778 – Roller Unit with Pin
•15147 – Anchor Stud (Qty. 2)
•54303 – Hitch Pin, 3/8″ x 1-1/2″
•29937 – Saddle Pin
•21954 – Scale Piston
•1531 (23274) – Steel Storage Box
•11146 – 1-1/4″ EMT Shoe
•11126 – 1-1/4″ EMT Follow Bar
•11075 – 1-1/4″ EMT Saddle
•14287 – 1-1/2″ EMT Shoe
•11107 – 1-1/2″ EMT Follow Bar
•11072 – 1-1/2″ EMT Saddle
•11132 – 2″ EMT Shoe
•11089 – 2″ EMT Follow Bar
•14279 – 2″ EMT Saddle
•29474 – 1-1/4″ IMC and Rigid Shoe
•29477 – 1-1/4″ IMC and Rigid Follow Bar
•29465 – 1-1/4″ IMC and Rigid Saddle
•29470 – 1-1/2″ IMC and Rigid Shoe
•29472 – 1-1/2″ IMC and Rigid Follow Bar
•29464 – 1-1/2″ IMC and Rigid Saddle
•29466 – 2″ IMC and Rigid Shoe
•29468 – 2″ IMC and Rigid Follow Bar
•29463 – 2″ IMC and Rigid Saddle
Greenlee 882CB Features:
•Choose 882 for EMT or 882CB models for EMT, IMC and Rigid Conduit.
•Simple, accurate and easy to use.
•Flip-Top hinged frame top plate opens for easy, fast loading and unloading.
•Ram travel scale and charts for accurate bends, o
