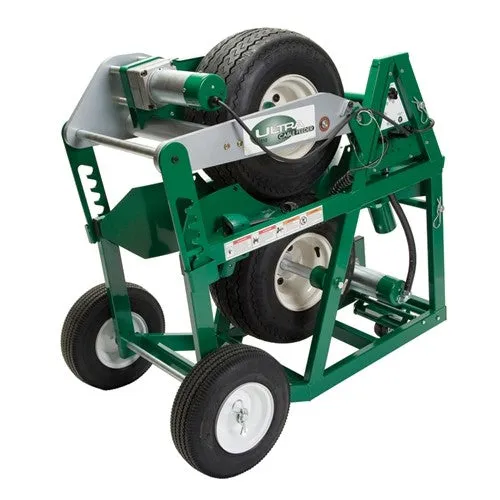

Greenlee 6810 Ultra Cable Feeder with Hand Switch
Greenlee 6810 Features
- Feeds cable at variable speeds to match the speed of cable puller.
- Accommodates cable ranging in size up to 3.5″ (88.9 mm) in diameter.
- Sets up easily and can be operated by just one person.
- Dual motors drive each wheel for traction on both sides of the cable.
- Comes with pendant and toggle switch. An optional foot switch (445) is available to control feeding.
- Two cable loading methods; top-loading and end-loading.
Greenlee 6810 Specifications
| Power Supply: | 115 VAC, 15 amps, 60 Hz |
| Speed: | 4-36 feet per minute (1.2-11 meters per minute) |
| Maximum Tractive Force Single Cable: | 200 lbs. (.9 kN) |
| Maximum Tractive Force All Cables: | 800 lbs. (3.5 kN) |
| Quantity x Size: | 8 x 250 MCM (120 mm2), 6 x 500 MCM (240 mm2), 5 x 750 MCM (300 mm2) |
