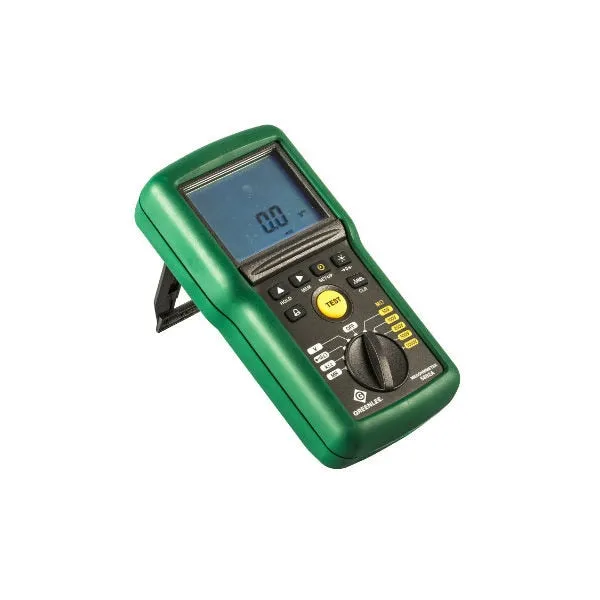

Greenlee 5882A 1kV Megohmmeter/Insulation Tester
Greenlee 5882A Includes
- (1) Megohmmeter 1kV
- (2) Red & Black Leads
- (2) Red & Black Test Alligator Clips
- (1) Black Test Probe

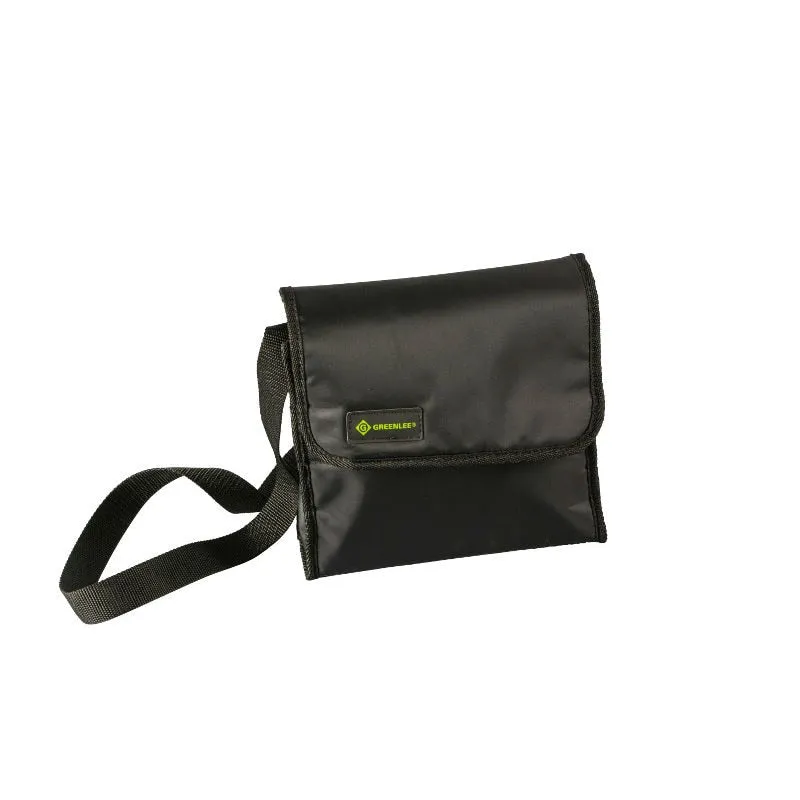

- (1) Carrying Case with Shoulder Strap
- (1) Manual
- (6) Batteries
Greenlee 5882A Features
- Calculations (automatic)
- Potential Index and Dielectric Absorption Ratios
- Tests Continuity, Resistance and Frequency Measurements
- Programmable Alarms
- Insulation Test, Resistance, Continuity
- Hazardous Voltage Alert (Icon) if voltage is >70 volts 5.) On Board Timer, +1/- 1 sec.
- Delta Reading “ΔREL”
- Data hold with 300 Entry Memory
- Standby Mode (automatic),saves battery power
- Hand Held, Compact Light Weight Form
- Intuitive Layout with Rotary Function Selector and Large Test Button
- Molded in Magnetic Mount for convenient hands-free measurements
- Molded in Magnetic Mount for convenient hands-free measurements
- Limited Life Time Warranty
Greenlee 5882A Specifications
| Applications: | Insulation Testing and Cable and Rotary Equipment |
| Automatic Discharge: | Yes [on completion of insulation test] |
| Continuity Range: | <100Ω |
| Display: | LCD: Large/ Bright, easy to read. Analog Bar Graph and Digital. |
| Measurement Category: | 1kV |
| Range: | 10kΩ to 200GΩ |
| Replacement Parts: | 5882A Test Lead Kit, 1kV Megohmmeter. 5882A Carrying Case, 1kV Megohmmeter. |
| Type: | Hand Held |
| WEIGHT: | 1.07 lbs |
| PRE-SET TEST VOLTAGES: | 50V, 100V, 250V, 500V, 1kV |
| RESISTANCE MEASUREMENT: | 0 to 4MΩ |
| FREQUENCY MEASUREMENT: | 15.3 to 800Hz |
| VOLTAGE MEASUREMENT: | .3 to 700V |
| OPERATING TEMPERATURE: | -4F to 131F |
| STORAGE TEMPERATURE: | -22°F – 176 °F |
| CONTINUITY CHECKING: | >100Ω |
| SAFETY VOLTAGE RATING: | CAT IV, 600V |
| WARRANTY: | Lifetime Limited |
| STANDBY MODE: | After 5 Minutes of Inactivity |
| BATTERY POWER SUPPLY: | Six 1.5V AA |
