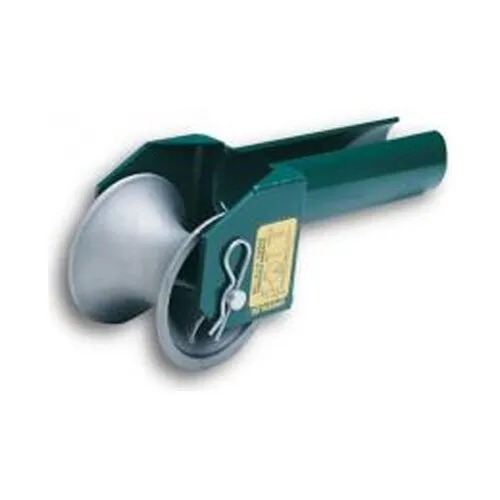

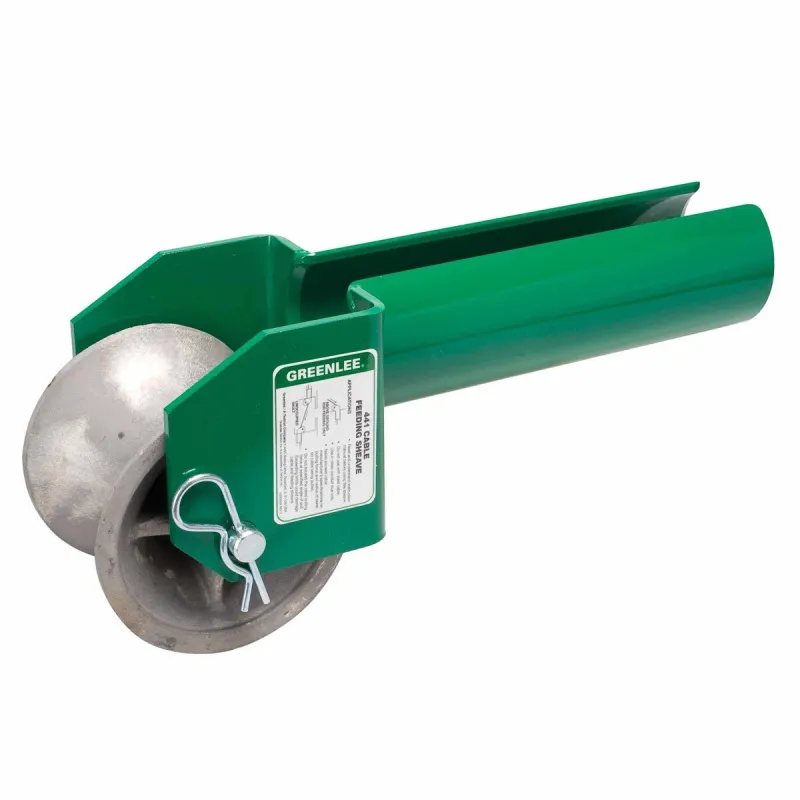

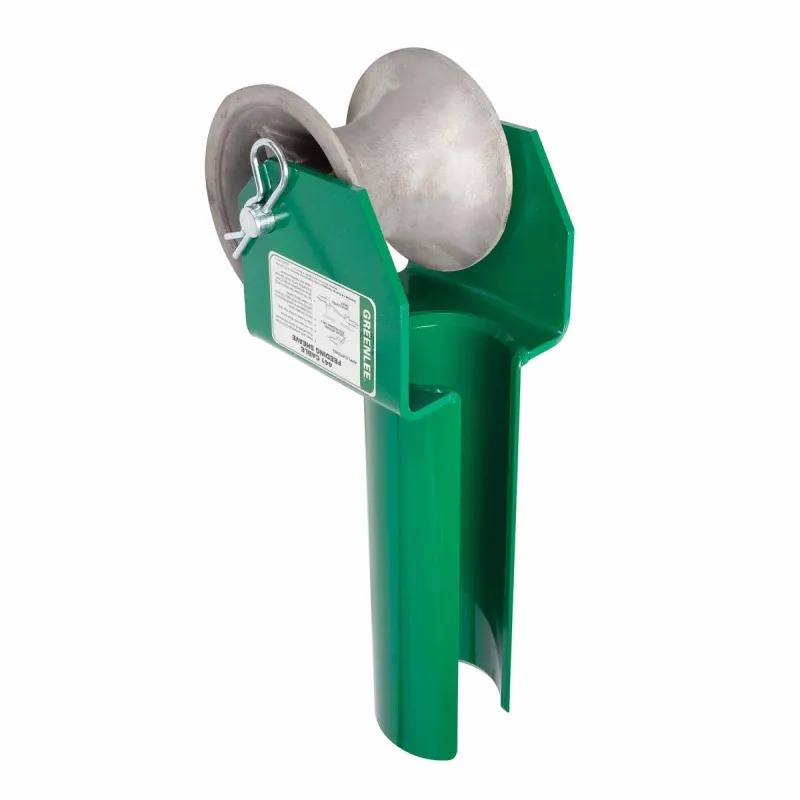

Greenlee 441-4 Feeding Sheave for 4″ Conduit
Greenlee 441-4 Features
- Yoke frame slides into the end of conduit and holds sheave, allowing the cable being fed into the conduit to smoothly roll over the sheave.
- 5″ (127 mm) wide aluminum alloy sheave with self-lubricating bearings.
- Split tube for easy removal after cable is installed.
Greenlee 441-4 Specifications
| Weight: | 19 lbs. (8.6 kg) |
| 15 °: | 6500 lbs. (28.9 kN) |
| 30°: | 6500 lbs. (28.9 kN) |
| 45°: | 5200 lbs. (23.1 kN) |
| 60°: | 4200 lbs. (18.6 kN) |
| 75°: | 3650 lbs. (16.2 kN) |
| 90°: | 3500 lbs. (15.5 kN) |
