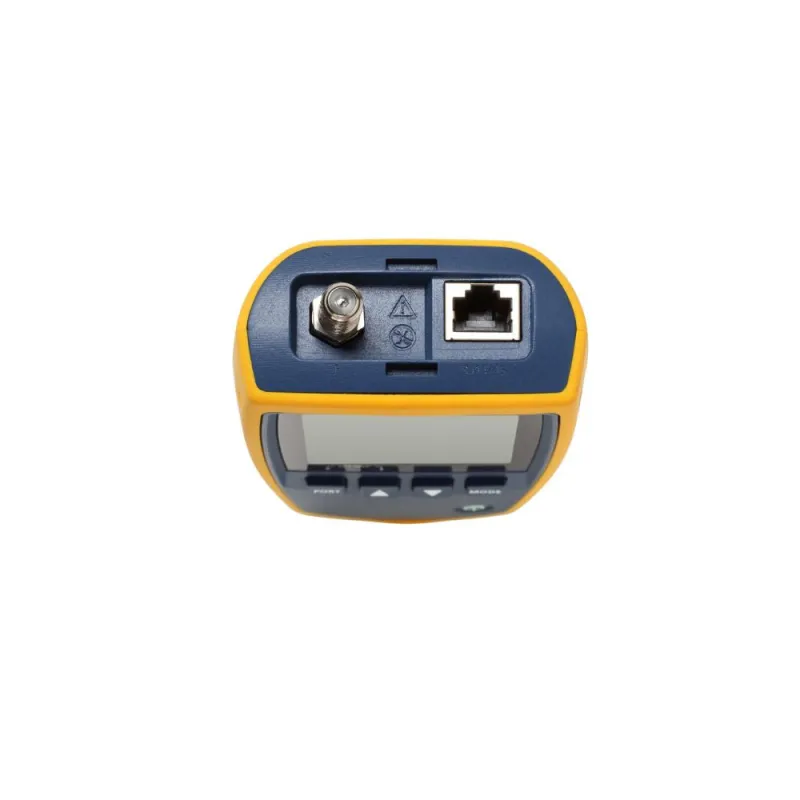

Fluke MS2-100 MicroScanner2 Cable Verifier
INCLUDES:
• (1) MicroScanner2 Cable Verifier with Main Wiremap Adapter
• (2) AA Alkaline Batteries
• (1) Carrying Pouch
• (1) Getting Started Guide
FEATURES:
• Graphical wiremap, length, cable ID, and distance to fault displayed on one screen
• Tests all common media types including RJ11, RJ45, Coax, with no need for adapters
• Locates virtually any cable or wire pair with IntelliTone digital and analog toning
• Verifies today’s media services, including 10/100/1000 Ethernet, POTS, and PoE
• Integrated rubber holster enhances grip and makes it durable enough for the toughest jobs
• Large, backlit LCD makes results crystal clear whether in bright sunshine or in a dark closet
• One year warranty
SPECIFICATIONS:
• Test Connectors Twisted-Pair: UTP, FTP, SSTP 8-Pin Modular Jack Accepts RJ45 and RJ11, Coax: F-Connector for 75 ?, 50 ?, 93 ? Cables
• Cable Tests: Length (460 m or 1500′), Wiremap to TIA-568A/B Standards, Remote ID Locators
• Tone Generator: IntelliTone Digital Tone: [500 KHz]; Analog Tones: [400Hz, 1KHz]
• PoE Detection: Solicits and Detects the Presence of 802.3af Compatible PoE Devices
• Ethernet Port Test: Advertised Speed of 802.3 Ethernet Ports (10/100/1000)
• Power Source Battery Type: 2 AA Alkaline Batteries
• Cable Type: Ethernet Cable, Cat5e, Shielded, 2 Pair AWG 26 Stranded (7 Wire), RAL 5021 (Water Blue), M12 4 Pos. D- Coded on RJ45 Connector
• Number of Positions: 4
• Fixed Cable Length: 2 m
• Volume Resistance: ? 5 m?
• Insulation Resistance: ? 100 M?
• Ambient Temperature: -20 °C to 50 °C
• Inflammability Class Acc to UL 94: V0
• Surge Voltage Category: II
• Pollution Degree: 3
• Degree of Protection: IP20/IP67
• External Cable Diameter: 6.7 mm
• Transmission Characteristics: Cat 5 (IEC 11801:2002), Cat 5e (TIA 568B:2001)
MicroScanner2 Industrial Ethernet cable verifier kit for troubleshooting operational networks includes Multi-Connector adapter and patch cables for testing RJ45, M12X, M12D, and M8D terminated cables
