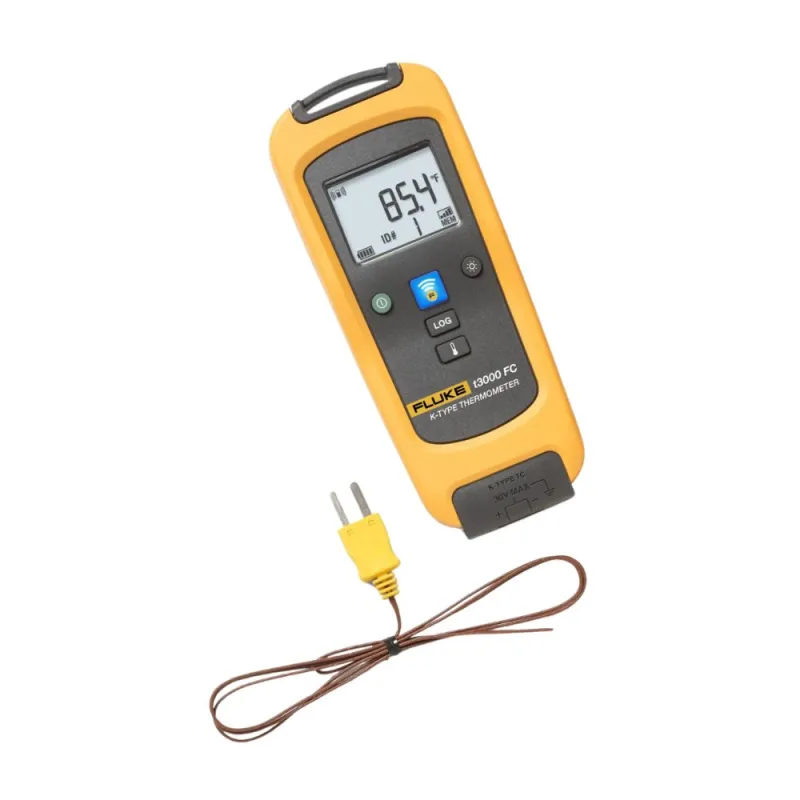

Fluke FLK-T3000FC FC Wireless K-Type Temperature Module
INCLUDES:
• (1) Thermometer
• (1) Hanging Strap
• (1) K-Type Bead Thermocouple
FEATURES:
• Use as standalone meter or as part of larger system
• Logging function for recording and saving up to 65,000 readings
• Includes 80PK-1 K-type bead thermocouple
• Communicate with iOS (4s and later) and Android (V4.3 and up) devices with Fluke Connect mobile app
• Wireless technology allows connectivity between phone, PC, and Fluke Connect-enabled test tools
• Team can see what you see remotely with ShareLive video calls
• Save money and time by taking multiple measurements simultaneously
• Isolate intermittent events or record signal fluctuations without being on-site, using log function
• Work with fewer interruptions by recording multiple sessions before downloading
• Save data to PC in .csv format (comma separated variable) file format
• Capture readings at different intervals with user-set recording intervals, from one second to up to one hour
• Send and communicate test data to managers and coworkers to assess abnormal system responses in an instant
• Have all asset test results at your fingertips after downloading to PC for future asset performance, tracking and reliability programs
• Capture up to 65,000 sets of MIN/MAX/AVG readings over single or multiple logging sessions, using recording capability; each reading and session is time stamped
• Avoid awkward or uncomfortable measurement positions; set up measurements once and read it as many times as you want, whenever you want
• View up to 6 live readings at once on the Fluke Connect mobile app or a PC to get a complete understanding of the situation
• Easily see backlit displays in dark or dimly lit work environments
• Choose auto or manual ranging
SPECIFICATIONS:
• Range K-Type: -328 to 2501.6°F (-200 to 1372°C)
• Resolution: 0.1°C
• Accuracy: ±[0.5% + 0.5°C] Counts
• Input Terminals: K-Type Mini
• LCD with Backlight: 3½ Digits
• Log Rate/Interval: 1 sec Minimum/Adjustable by PC
• Battery Type: 2 x AA Batteries, NEDA 15 A, IEC LR6
• Battery Life: 400 hours
• Memory: Record up to 65,000 Readings
• RF Communications: 2.4 GHZ ISM Band
• RF Communication Range: Open Air, Unobstructed: Up to 65.6′ (20 m), Obstructed, Sheetrock Wall: Up to 21.3′ (6.5 m), Obstructed, Concrete Wall or Steel Electrical Enclosure: Up to 11.5′ (3.5 m)
• Operating Temperature: 14 to 122°F (-10 to 50°C)
• Storage Temperature: -40 to 140°F (-40 to 60°C)
• Temperature Coefficient: 0.01% of Reading +0.03°C per °C
• Temperature Scale: ITS-90
• Operating Humidity: 90% at 95°F (35°C), 75% at 104°F (40°C), 45% at 122°F (50°C)
• Altitude Operating: 6561.7′ (2000 m), Storage: 39,370.1′ (12,000 m)
• EMC: EN 61326-1:2006
• Safety Compliance: IEC 61010-1, CAT I, 3rd edition Pollution Degree 2
• Certifications: CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE
• Ingress Protection (IP) Rating: IP42
• Pollution Degree: 2
The Fluke 3000 FC Wireless Test Tools are a team and the modules are team players. You connect any of the Fluke Connect Modules to your test point and then view the results on specific Fluke Connect enabled hardware or through Windows software on your PC—up to 20 meters (65.6 feet) away. Save time and conduct more tests with less trips. Fluke t3000 FC Wireless K-Type Temperature Module. A versatile K-type thermocouple thermometer wirelessly relays measurements to other Fluke Connect enabled master units, listed below: Fluke 3000 FC DMM Fluke Ti200/300/400 Infrared Camera PC via optional pc3000 FC Adapter Fluke Connect Mobile app
