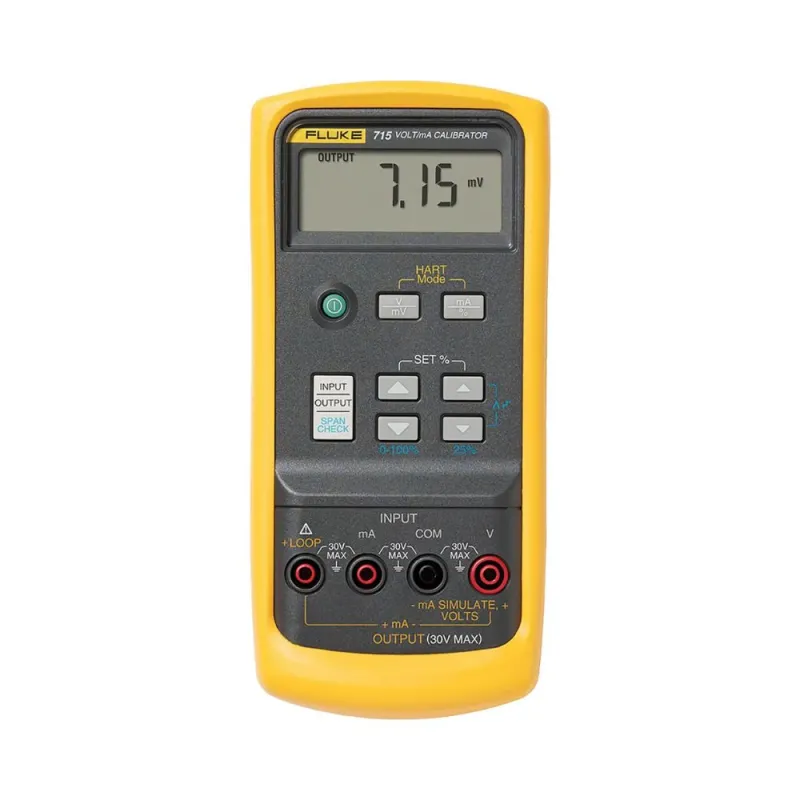

Fluke 715 Volt/mA Loop Calibrator
Fluke 620101 Description
The Fluke 715 Volt mA Calibrator delivers outstanding performance, durability, and reliability in a compact, lightweight tool. Offered in the rugged Fluke 80 Series DMM package, the calibrator measures loop current as well as voltage output. It sources voltage to 200 mV or 20 V, measures loop current (0-20 mA, 4-20 mA) signals with 0 .01 % accuracy and 1 µA resolution, and measures voltage output process signals from PLCs and transmitters. It can source or simulate 4-20 mA loop current and provides a 24 V loop supply with simultaneous current measurement.
Fluke 620101 Includes
- (1) Volt/Ma Calibrator
Fluke 620101 Features
- Measure loop current (0 – 20 mA, 4 to 20 mA) signals with very high accuracy of 0.015% and 1 mA resolution
- Measure voltage output process signals from PLCs, transmitters
- Source or simulate 24 mA loop current
- 24 V loop supply with simultaneous current measurement
- Enhanced voltage and current measure and source accuracy
- Improved Battery life
- 250 ohm HART resistor with loop power
- Holster features test lead storage
- Compatible with ToolPak magnetic hanging system
- Step and linear ramp output function
Fluke 620101 Specifications
| Unit Weight (KG) | 1.015 |
| Unit Height (CM) | 6.5 |
| Unit Length (CM) | 24.4 |
| Unit Width (CM) | 17.9 |
