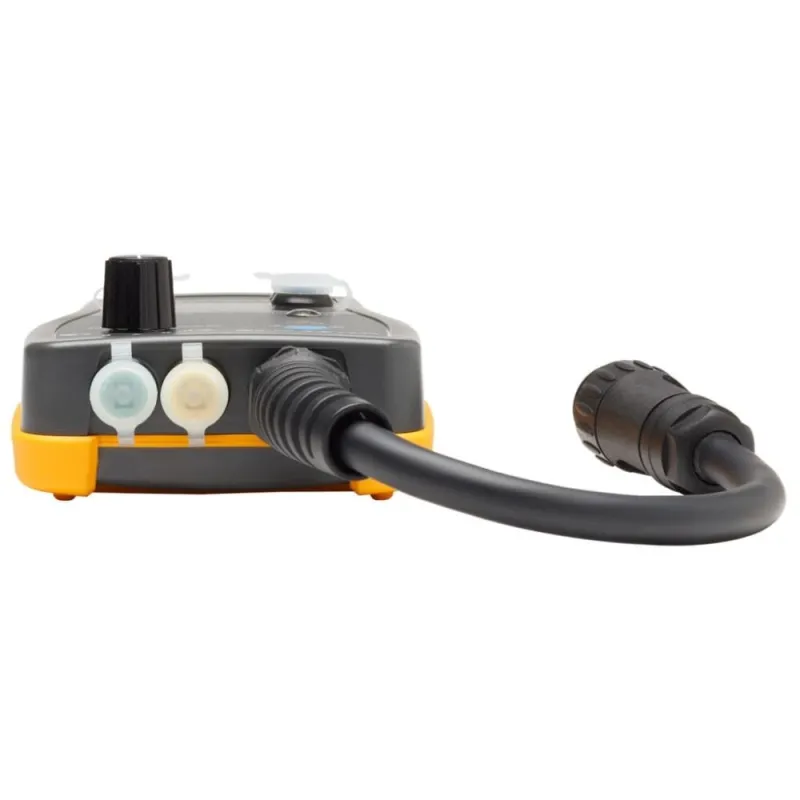

Fluke 5258790 FLK-FEV100/TY1 – Test Adapeter Electric Vehicle Charging Stations w/ Type 1 Connector & Cable
Fluke 5258790 Description
Test the safety and performance of a type 1, level 1 or level 2 electric vehicle ac charging stations (EVSEs) with the Fluke FEV100. This test adapter simulates the presence of an electrical vehicle, allowing you to conduct tests in combination with appropriate test instruments such as a digital multimeter or oscilloscope. Use the FEV100 to verify an EVSE is working properly after install and during periodic maintenance or troubleshoot an EVSE if it is not delivering the appropriate charge.
Fluke 5258790 Includes

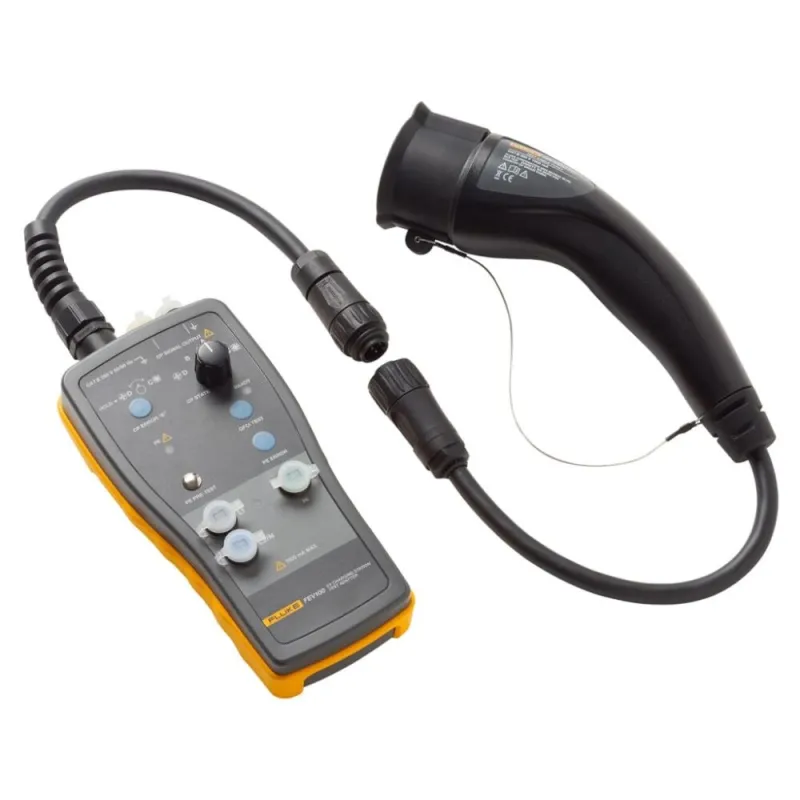

- (1) FEV100/BASIC Test Adapter
- (1) FEV-COM/TY1 Type 1 Connector and Cable
- (1) Soft Carrying Case
- (1) User Manual
Fluke 5258790 Features
- Check protective earth for correct wiring and functioning with the PE pre-test feature.
- Perform GFCI troubleshooting of EVSE and verify operation within safety standards.
- Test charging states of EVSE with CP state simulation.
- Verify charging voltage and maximum available current using a multimeter.
- SAE J1772 compliant to North American standards.
Fluke 5258790 Specifications
| Input Voltage | UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 208 V, 60 Hz (three-phase system) or UL1/N = 120 V, UL2/N = 120 V, UL1/L2 = 240 V, 60 Hz (single-phase system), ±10 % Voltage Fluctuations From Nominal 2 |
| EV Connector (EVC-13) | SAE J1772 Socket, 16 A (type 1, 5P single-phase) |
| Internal Power Consumption | 2 W Max |
| Operating Temperature | -4 °F to 104 °F (-20 °C to 40 °C) |
| Storage Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Operating Humidity Range | 10% to 85% Relative Humidity Non-Condensing |
| Storage Relative Humidity | 0% to 85% Non-Condensing |
| Operating Altitude | 6561′ (2000 m) Max |
| Safety Standards | IEC 61010-1, Pollution Degree 2; IEC 61010-2-030 |
| Measurement Category | CAT II 250 V |
| IP Protection Class | IP54 |
