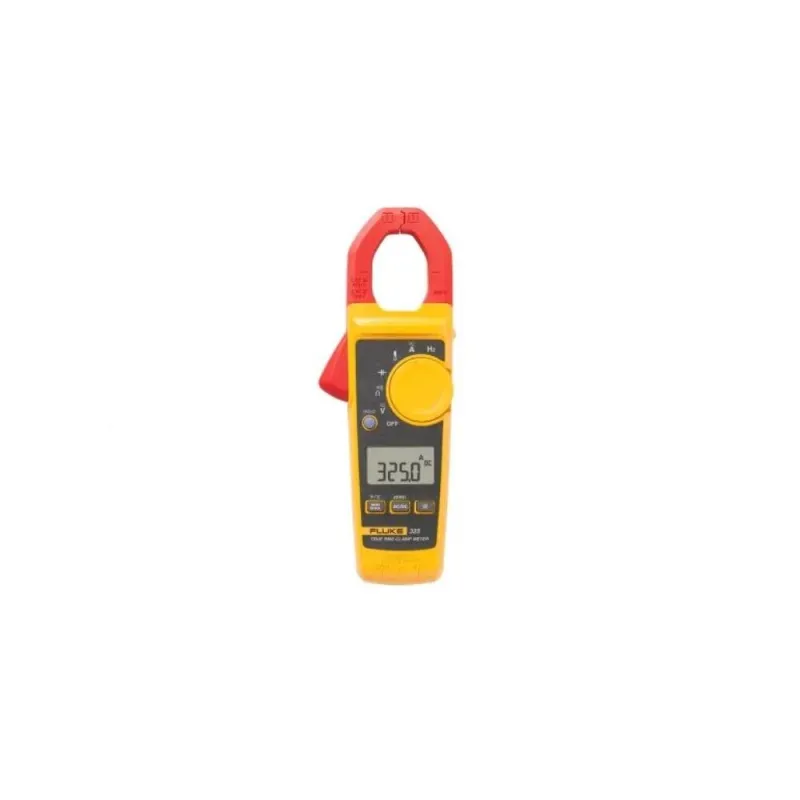

Fluke 325 400A AC/DC True RMS Clamp Meter

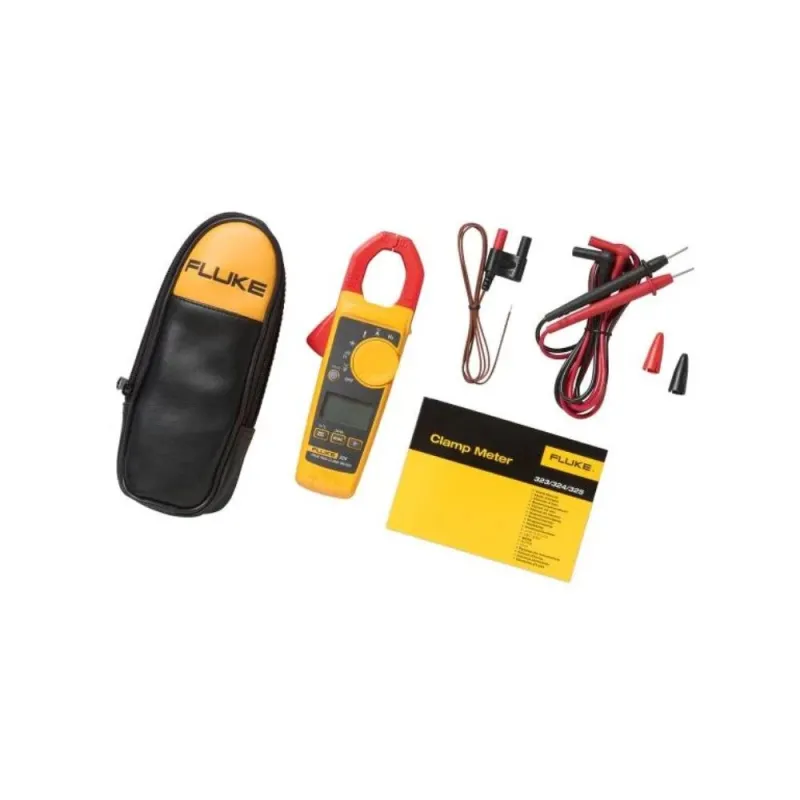

INCLUDES:
• (1) 325 True-RMS Clamp Meter
• (1) TL75 Test Leads
• (1) Type K Thermocouple
• (2) AAA Batteries
• (1) Soft Case
FEATURES:
• True-rms AC/DC current, voltage, temperature, frequency
• Clamp meter, test leads, K-type thermocouple and soft case
• Versatile tool performs most front-line measurement tasks
SPECIFICATIONS:
• AC Current Range: 40.00 A / 400.0 A
• AC Current Accuracy: 2% ± 5 digits (45 Hz to 65 Hz), 2.5% ± 5 digits (65 Hz to 400 Hz)
• DC Current Range: 40.00 A / 400.0 A
• DC Current Accuracy: 2% ± 5 Digits
• AC Voltage Range: 600.0 V
• AC Voltage Accuracy: 1.5% ± 5 Digits
• DC Voltage Range: 600.0 V
• DC Voltage Accuracy: 1.0% ± 5 Digits
• Resistance Range: 400.0 ? / 4000 ? / 40.00 k?
• Resistance Accuracy: 1.0% ± 5 Digits
• Continuity: ? 30 ?
• Capacitance: 0 to 100.0 ?F / 100?F to 1000 ?F
• Frequency: 5.0 Hz to 500.0 Hz
• AC Response: True-RMS
• Backlight: Yes
• Data Hold: Yes
• Contact Temperature: -10.0°C to 400.0°C (14.0°F to 752.0°F)
• Min/Max: Yes
• Max Wire Diameter: 30 mm (600 MCM)
• Category Rating: CAT III 600 V, CAT IV 300 V
Work with the best. The Fluke 325 True-rm Clamp Meter offers big features in a small form factor. Fluke rugged. Fluke reliable. Fluke precise. True-rms measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians. The 323, 324 and 325 are designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. These small and rugged clamp meters are ideally suited for current measurements up to 400 A in tight cable compartments. The Fluke 325 also offers DC current and frequency measurements.
