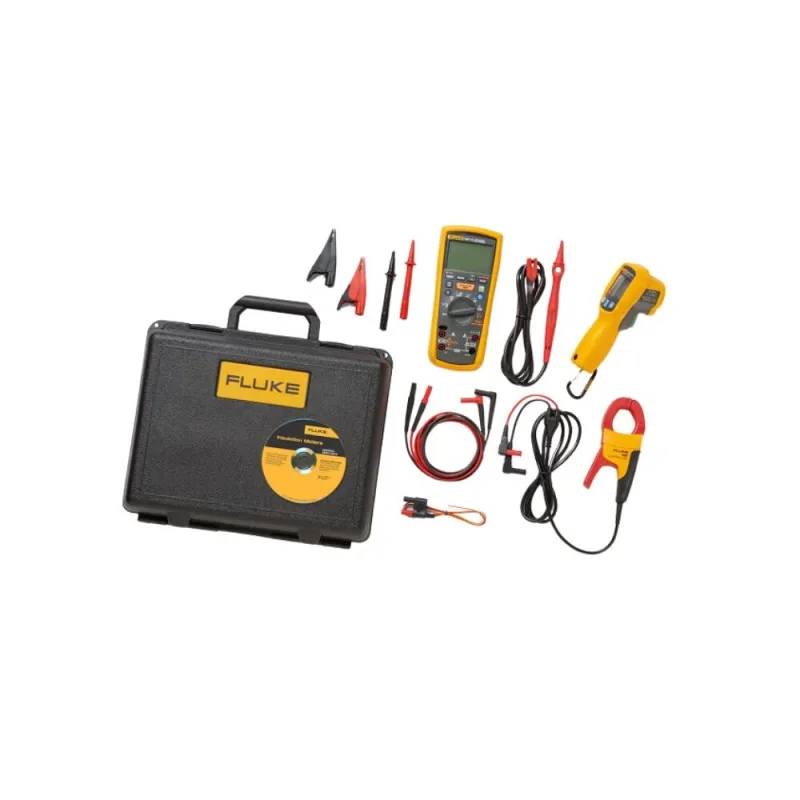

Fluke 1587KIT/62MAX+ FC Advanced Electrical Troubleshooting Kit
INCLUDES:
• (1) 1587 FC Insulation Multimeter
• (1) i400 Current Clamp
• (1) 62 MAX+ Infrared Thermometer
• (1) Remote Probe
• (1) Test Leads
• (1) Alligator Clips
• (1) K-Type Thermocouple
• (1) Carrying Case
• (1) User Documentation
FEATURES:
• PI/DAR timed ratio tests
• Live circuit detection prevents insulation test if voltage >30 V is detected for added user protection
• VFD low-pass filter for accurate motor drive measurements
• Auto-discharge of capacitive voltage for added user protection
• Insulation test of 0.01 M? to 2 G?
• Insulation test voltages of 50, 100, 250, 500 V for many applications
• AC/DC voltage, DC millivolts, AC/DC milliamps, resistance (?), continuity
• Capacitance, diode test, temperature, Min/Max, frequency (Hz)
• Auto power off to save battery power
• CAT III 1000 V, CAT IV 600 V measurement category
• Large display with backlight
• Safety first. Keep yourself out of harm’s way by monitoring your test measurements remotely
• Prove your job is done right by quickly seeing and sharing measurement results wirelessly with your smartphone
• Quickly find problems by saving and comparing measurements over time on a wireless device
• Use with your Fluke 1587 to measure 1A AC to 400 A AC
• 1 mA/Amp output guarantees easy reading
• CAT III 1000 V / CAT IV 600 V overvoltage rating for added user protection
• Specially designed to offer maximum utility in a very compact shape
SPECIFICATIONS:
• Voltage DC Maximum Voltage: 1000 V
• Voltage DC Accuracy: ±(0.09%+2)
• Voltage DC Maximum Resolution: 0.001V
• Voltage AC Maximum Voltage: 1000 V
• Voltage AC Accuracy: ±(2%+3)
• Voltage AC AC Bandwidth: 5kHz* *with low pass filter; 3db @ 800 Hz
• Voltage AC Maximum Resolution: 0.1 mV
• Current DC Maximum Amps: 400mA
• Current DC Amps Accuracy: ±(0.2%+2)
• Current DC Maximum Resolution: 0.01 mA
• Current AC Maximum Amps: 400mA
• Current AC Amps Accuracy: 1587: ±(1.5%+2)* * 1kHz bandwidth
• Current AC Maximum Resolution: 0.01 mA
• Resistance Maximum Resistance: 50 M?
• Resistance Accuracy: ±(0.9%+2)
• Resistance Maximum Resolution: 0.1?
• Capacitance Maximum Capacitance: 9,999 µF
• Capacitance Accuracy: ±(1.2%+2)
• Capacitance Maximum Resolution: 1 nF
• Maximum Frequency: 100 kHz
• Frequency Accuracy: ±(0.1%+1)
• Frequency Maximum Resolution: 0.01 Hz
• Temperature Measurement: -40.0 °C to 537 °C, -40.0 °F to 998 °F Excluding Probe
• Diode Test Range: 6 V
The products in this kit have been specifically selected for both troubleshooting and preventative maintenance applications. Establishing preventative maintenance programs are becoming critical to maintaining the uptime of electrical equipment and can significantly reduce both planned and unplanned downtime. Contains: FC 2-IN-1 ADV Motor & Drive Kit w/9040, i400
