Fluke 1555/KIT Insulation Resistance Tester Kit, 10kV
Fluke 3665111 Description
Voltage breakdown detection alerts the user that voltage is present and gives the voltage reading up to 600V AC or DC for increased user safety. With selectable test voltages in 50V steps from 250 to 1000V and 100V steps above 1000V. Complete kit including test cable set.

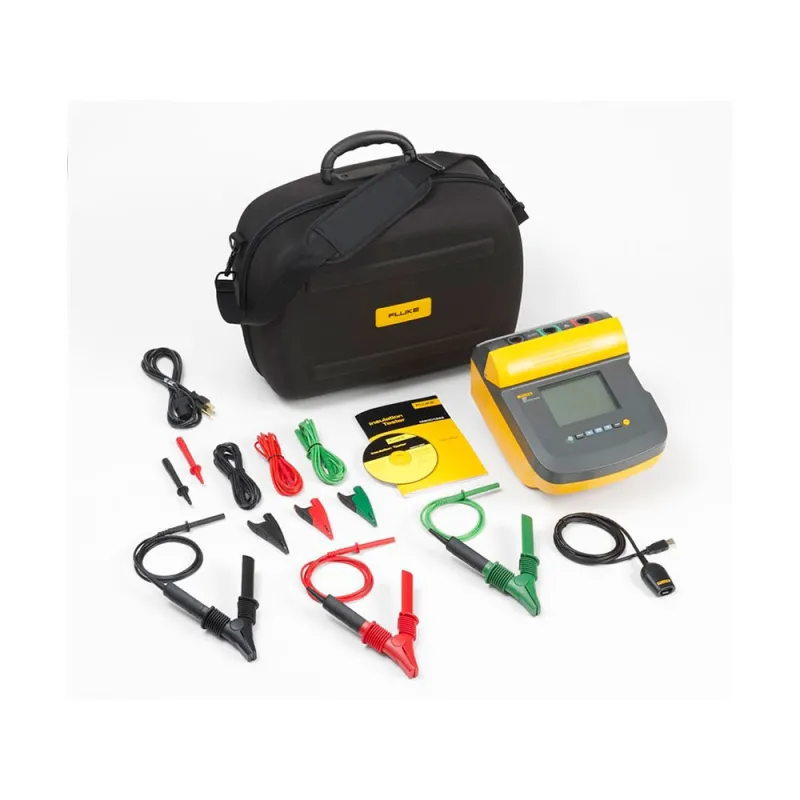

Fluke 3665111 Includes
- (1) Insulation Resistance Tester
- (1) Certificate of Calibration
- (1) Set Test cables with alligator clips (red, black, green)
- (1) Infrared adapter with interface cable
- (1) FlukeView® Forms Basic CD-ROM
- (1) AC power cord
- (1) English manual
- (1) User’s manual on CD-ROM
- (1) Quick reference card
- (1) Software license agreement
- (1) Registration card
- (1) FlukeView® Forms installation guide
- (1) USB-IR cable installation guide
- (1) Heavy duty alligator clip leads
- (1) Carrying Case
Fluke 3665111 Features
- Test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™
- Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
- Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user-defined label for easy recall
- Long battery life gives the user over 750 tests between charges
- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Capacitance and leakage current measurement
- Ramp function for breakdown testing
- Resistance measurements up to 2 TΩ
- Timer settings up to 99 minutes for timed tests
Fluke 3665111 Specifications
| Bar Graph Range | 0 to 1 TΩ (1550C) – 0 to 2 TΩ (1555) |
| Insulation Test Voltage Accuracy | -0 %, +10 % at 1 mA load current |
| Induced AC Mains Current Rejection | 2 mA maximum |
| Charging Rate for Capacitive Load | 5 seconds per °F |
| Discharge Rate for Capacitive Load | 1.5 s/°F |
