Fein 72725361127 JHM Magforce Magnetic Base Drill 1-5/8″ Capacity
INCLUDES:
• (1) Magnetic Base Drill – 1-5/8″ Capacity
• (1) Coolant Tank
• (1) Safety Strap
• (1) Chip Hook
• (4) Pilot Pins
• (1) Allen Key – 5 mm
• (1) Allen Key – 5 mm
• (1) Chip Guard
FEATURES:
• Hand feed wheel mounts on either side for use in special situations.
• Internal motor cable routing prevents unintended threading or hanging up on the workpiece.
• Internal cooling.
• Solid die-cast aluminum construction.
• Stationary drill motor.
• Quill feed spindle eliminates field maintenance and adjustments and provides positive (mechanical) slug ejection.
SPECIFICATIONS:
• Power consumption: 1,100 W
• Power output: 610 W
• Full load speed: 280 rpm
• No load speed: 450 rpm
• HSS cutter max. dia.: 1-9/16 [40] in[mm]
• Cutter max. drilling depth: 2 [50] in[mm]
• Cutter holder: 3/4″ straight shank
• Magnetic holding force: 2023 [9,000] lbs[N]
• Cable with plug: 13 [3.8] ft[m]
• Weight: 28.88 lbs
• Power Source: Corded Electric

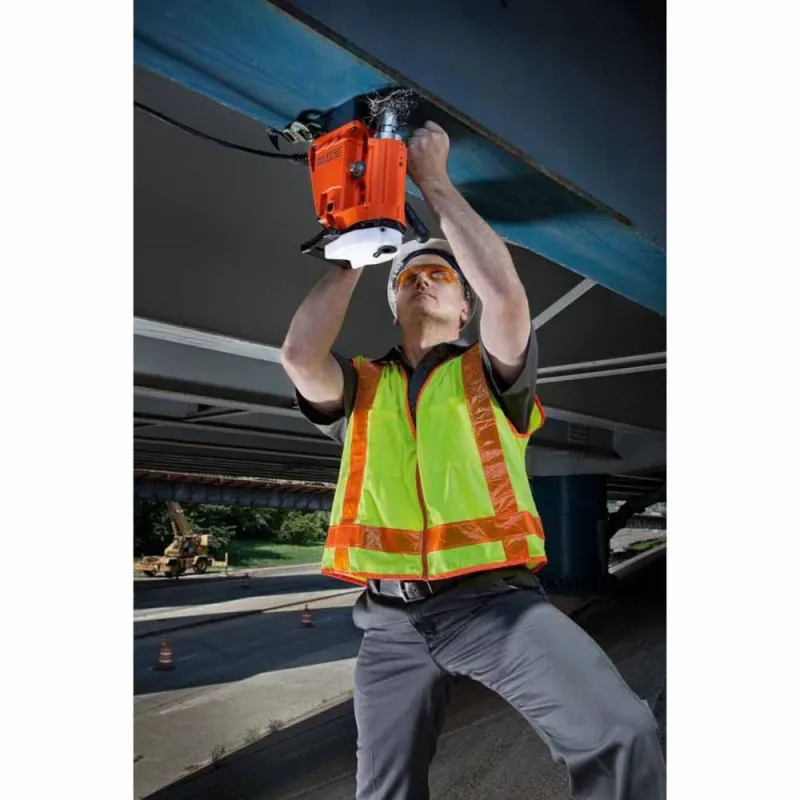

The JHM MAGFORCE is your go-to mag drill device for precise drilling up to 1-5/8″ [40 mm]. Engineered for efficiency in small spaces, its compact design has a fixed drill motor, making it ideal for constrained work locations. With a great power-to-weight ratio, it’s the ideal choice for elevated tasks and tight confines, ensuring consistent performance wherever you need it.
