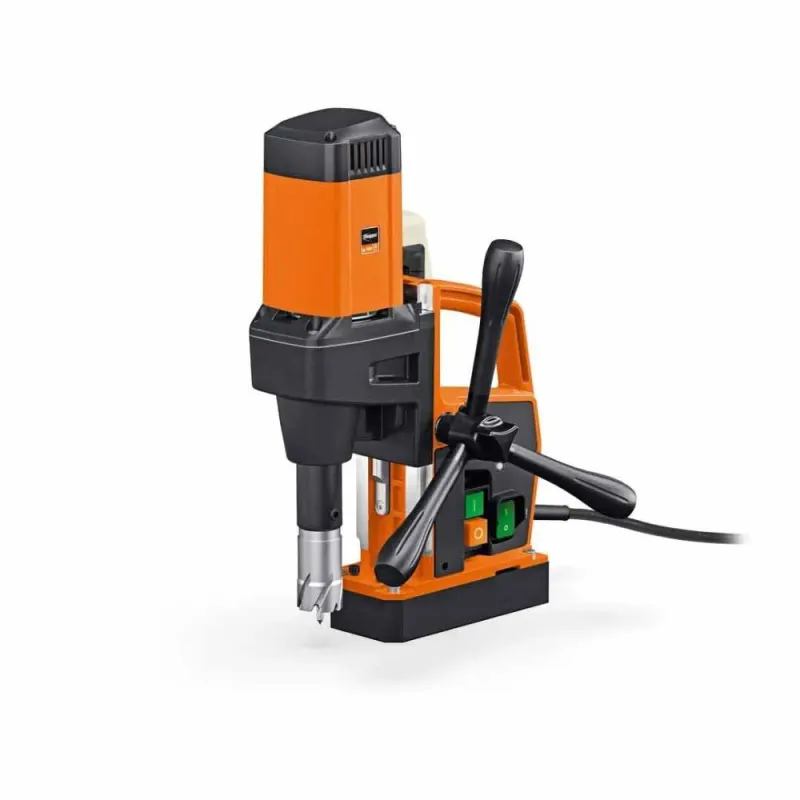

Fein 72709461090 JMU Shortslugger II Magnetic Base Drill 1-1/4″ Capacity
INCLUDES:
• (1) Endurance Magnetic Base Drill – 1-1/4″ Capacity
• (1) Coolant Tank
• (1) Safety Strap
• (1) Chip Hook
• (1) Centering Pin – dia. 1/4 x 3-1/4 [6.35 x 82] in[mm]
• (1) Centering Pin – dia. 1/4 x 3-1/4 [6.35 x 82] in[mm]
• (1) Centering Pin – dia. 3/16 x 4 [4.75 x 100] in[mm]
• (1) Chip Guard
• (1) Allen Key – 5 mm
• (1) Tool Case
FEATURES:
• For tough use, thanks to high-quality workmanship and internal motor cable routing
• Uncompromising service life through extra-durable gearbox design with up to 400 hours of operation time
• Lightweight with FEIN high-performance motor and high torque for all core drilling work
• A Convenient magnetic holding force indicator supports the safe positioning of the tool
• Motion sensor
• Internal cooling
• High magnetic holding force
• Hand feed wheel can be mounted on either side
• Good accessibility in cramped operating situations
SPECIFICATIONS:
• Power consumption: 1,200 W
• Power output: 770 W
• Full load speed: 450 rpm
• No load speed: 700 rpm
• Carbide cutter max. dia.: 1-1/4 [32] in[mm]
• HSS cutter max. dia.: 1-1/4 [32] in[mm]
• Cutter max. drilling depth: 2 [50] in[mm]
• Stroke: 3-9/16 [90] in[mm]
• Magnetic holding force: 2248 [10,000] lbs[N]
• Cable with plug: 10 [3] ft[m]
• Weight: 23.81 lbs
• Power Source: Corded Electric

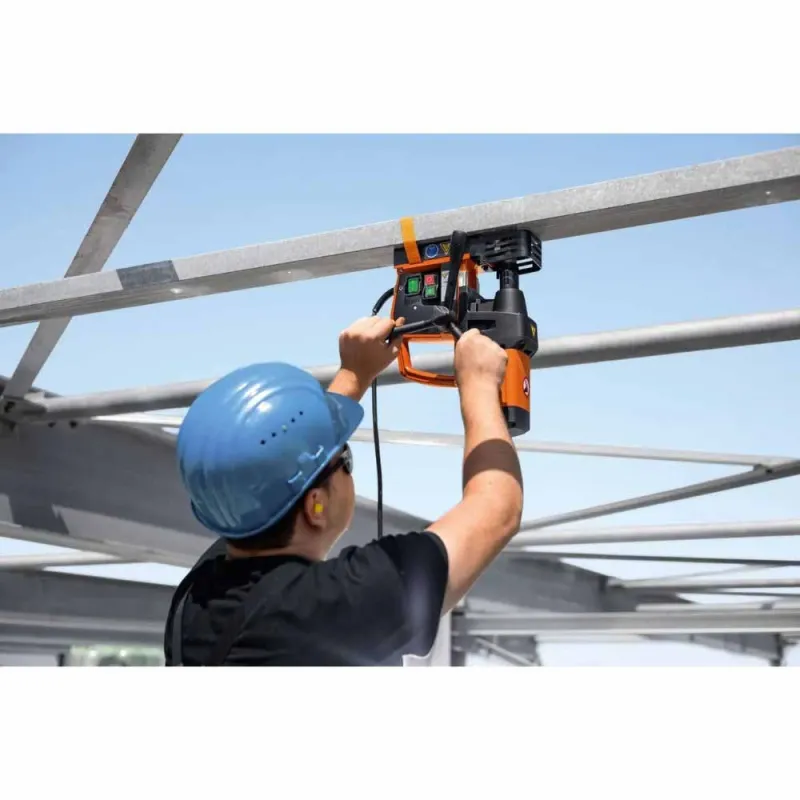

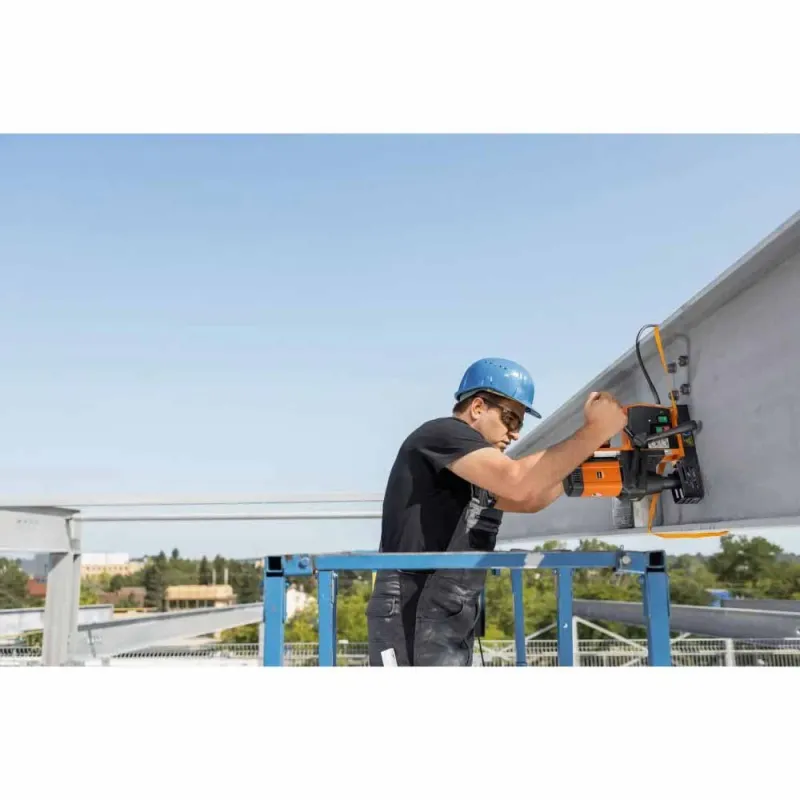

The JME SHORTSLUGGER II is a strong and dependable magnetic base drill built for durability and precision. With a capacity of up to 1-1/4 inches (32 mm), this small yet powerful instrument is ideal for core drilling duties both in the workshop and on construction sites. Its high-quality design ensures endurance, and internal motor cable routing increases its robustness, making it excellent for harsh working environments.
