Eibenstock CS Unitec ETN 162/3 PSV Hand Held Wet/Dry Diamond Core Drill for Concrete w/ Anchor/Vacuum Stand and Pump Kit| 6-3/8″ Capacity in Reinforced Concrete/8″ in Brick/Block | 3-Speed | MADE IN GERMANY 120V
CS Unitec ETN 162/3 PSV Includes

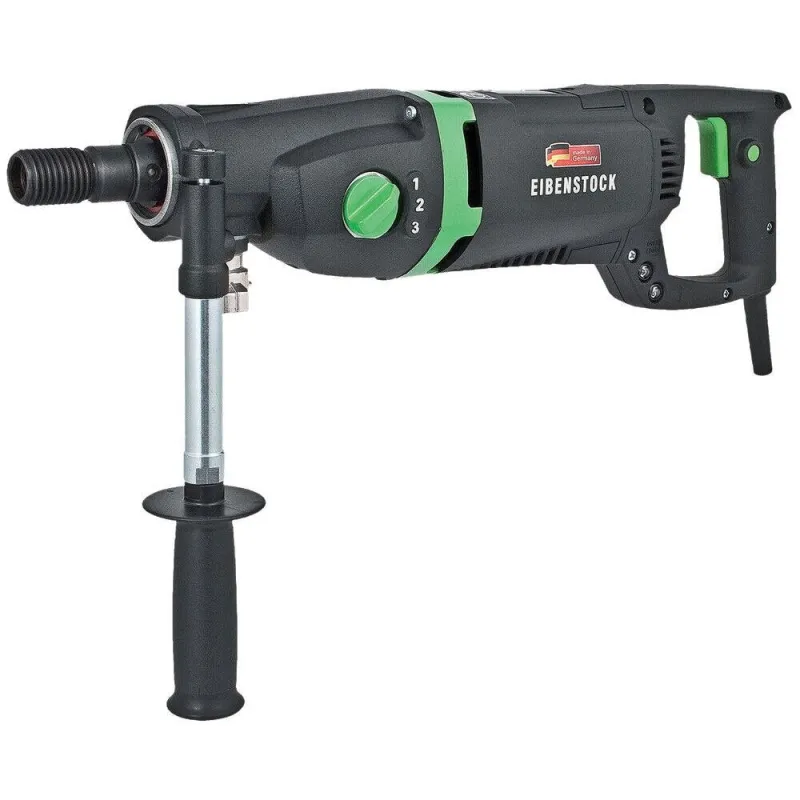

- (1) ETN 162/3 P Core Drill
- (1) Molded Carrying Case

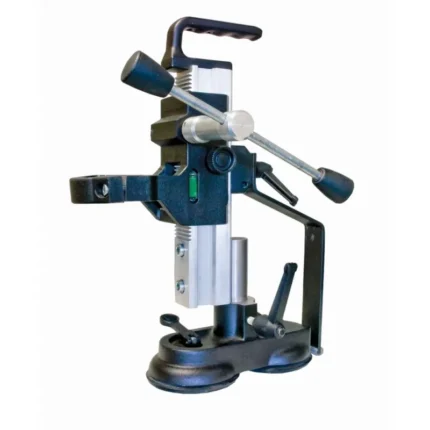

- (1) Anchor/Vacuum Stand
- (1) Vacuum Pump
- (1) Water Swivel
- (1) Gardena quick hose connector
- (1) Dust extraction port
- (1) 5/8″ x 11 UNC adapter
- (1) Open wrench SW 32 + 41
CS Unitec ETN 162/3 PSV Features
- Heavy-duty, light-weight wet/dry core drill rig anchor/vacuum stand & vacuum pump. Drill and Stand can be easily mounted independently.
- 6-3/8″ diameter hole capacity in reinforced concrete/8″ in Brick, Block and Masonry.*
- Powerful 19.5 amp motor for demanding use when drilling in reinforced concrete, stone, asphalt, marble, ceramic, walls, floors and more.
- 3 speed gear box (0-510/0-1150/0-2500 rpm load speed) for increased bit life and cut quality.
- Oil bath gear box and mechanical safety clutch for optimal lubrication, reduced heat and increased user safety
- Collar for easy mounting. Rig mounting kits, and anchor and vacuum stands available.
- Machine integrated water supply and dust collection. Vacuum and Gardena quick connect with water adjustable flow rate for easy use with standard garden hose.
- GFCI over-current cut-off protection standard
- Drill Can be used Handheld or Rig Mounted. Stand easily adjustable up to 45?
CS Unitec ETN 162/3 PSV Specifications
| Motor | 19.5 Amps, 120V |
| Max. Drilling Diameter | up to 6-3/8″ (Reinforced Concrete)/8″ Brick & Block* |
| Load Speed | 0-510/0-1150/0-2500 |
| Weight | 34 lbs. |
| Power Type | Electric w/ GFCI |
| Spindle Connection(s) |
1-1/4″ x 7 UNC, 5/8″ x 11 UNC |
| Collar Diameter | 60 mm |
| Handheld or Rig Mounted | Handheld & Anchor/Vacuum Stand (Vacuum Pump Included) |
| Stand | BST 162 V Stand & Vacuum Pump (Included) |
| Independent Motor Mounting from Drill Rig? | YesPowerful 19.5 amp, 120V motor for demanding use when wet drilling in reinforced concrete, stone, asphalt, marble, ceramic, walls, floors and more;3 speed gear box (0-510/0-1150/0-2500 rpm load speed) concrete drill with oil bath gear box and mechanical safety clutch for optimal lubrication, reduced heat and increased user safety;Machine integrated water supply with gardena style quick connect and adjustable valve for easy use with standard garden hose. GFCI over-current cut-off protection standard;Only 15 lbs., Collar Diameter 60mm collar for easy mounting, rig mounting kits available. Easy Changeover for wet / dry drilling with integrated connections. Comes equipped with anchor stand and vacuum pump. *For drilling over 3″ dia. drill must be mounted to anchor or vacuum stand. |
