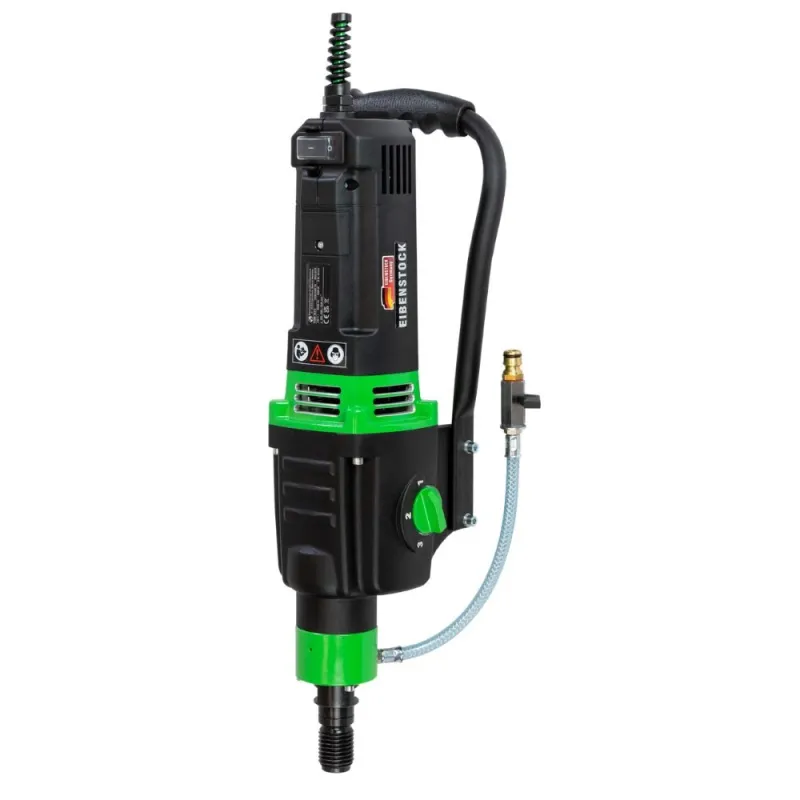

Eibenstock CS Unitec EBM 352/3 P Wet Core Drill Motor | 14 in. Capacity | For Use with BST 300 or BST 300 V Anchor Stand | 3-Speed |MADE IN GERMANY 120V
CS Unitec EBM 352/3 P Includes
- (1) EBM 352/3 P Core Drill Motor
- (1) 1-1/4″x7 adapter
- (1) 5/8″ x 11 UNC adapter
- (2) Wrenches
CS Unitec EBM 352/3 P Features
- Heavy-duty, light-weight core drill motor.
- 14″ diameter hole capacity in reinforced concrete & more
- Powerful 20 amp motor for demanding use when wet drilling in reinforced concrete, stone, asphalt, marble, ceramic, walls, floors and more
- 3 speed gear box (230/500/1030 rpm load speed) for increased bit life and cut quality.
- Universal Tool Holder / Motor Slide Mount Allows for Easy Separate Mounting of Core Drill Motor to rig/stand for reduced user fatique and increased accuracy
- Oil bath gear box and mechanical safety clutch for optimal lubrication, reduced heat and increased user safety
- Machine integrated water supply. Vacuum and Gardena quick connect with water adjustable flow rate for easy use with standard garden hose.
- GFCI over-current cut-off protection standard
- Multiple Stand/Rig Setups Available:

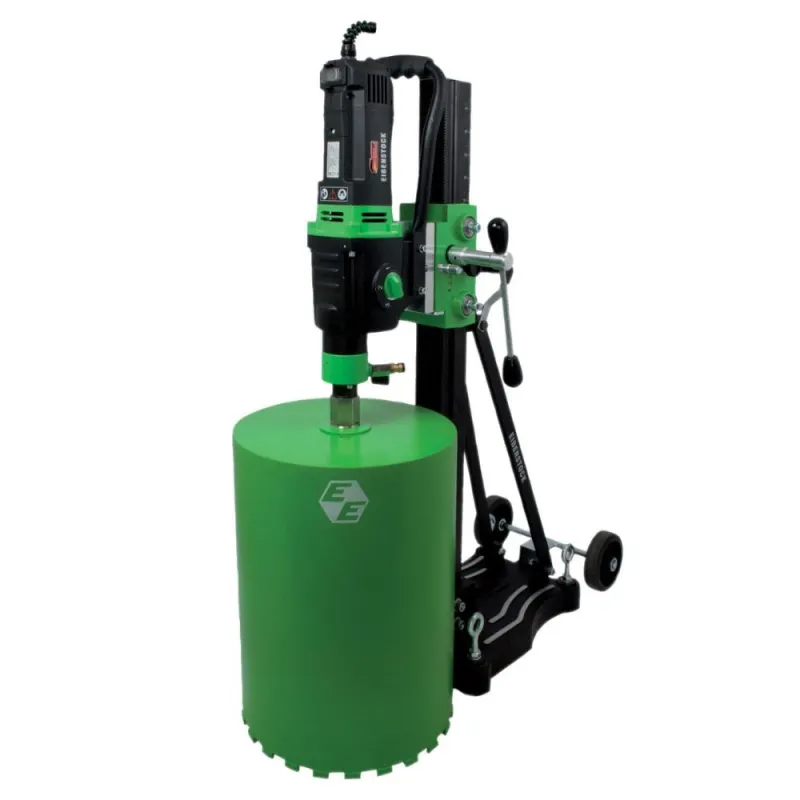

Anchor Stand = BST 300
Anchor/Vacuum Stand = BST 300 V. Stands easily adjustable up to 45? - For Drilling Over 12″ Dia. Space Block 3582700 is required (Sold Separately)
CS Unitec EBM 352/3 P Specifications
| Motor | 24.5 Amps, 120V |
| Max. Drilling Diameter | up to 14″ |
| Load Speed | 230/500/1030 RPM |
| Weight | 28 lbs. |
| Power Type | Electric w/ GFCI |
| Spindle Connection(s) |
1-1/4″ x 7 UNC, 5/8″ x 11 UNC |
| Handheld or Rig Mounted | Rig Mounted (Motor only, purchase stand separately) |
| Independent Motor Mounting from Drill Rig? | YesCS Unitec Eibenstock EBM 352/3 P Core Drill |
