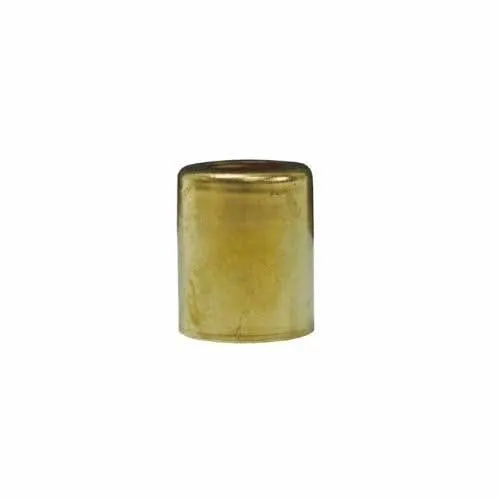

Dixon BFM656 Brass Ferrule for Air & Fluid .656″ ID, 1″ Long, End Hole 7/16″
Dixon BFM656 Includes
- (50) Ferrules
Dixon BFM656 Features
- For use with medium weight air hose
Dixon BFM656 Specifications
| Material | Brass |
| Length | 1″ |
| Ferrule ID | 0.656″ |
| End Hole Size | 7/16″ |
| Metal Gauge | .024″ |
| Standard Ind. Pt Number | 7328 |
| Ribbed Die | R34 |
| Plain Die | P35 |
| Bore/Crimp Diameter | 0.600″ (Plain die bore diameter can be used as crimp spec ±.005) |
