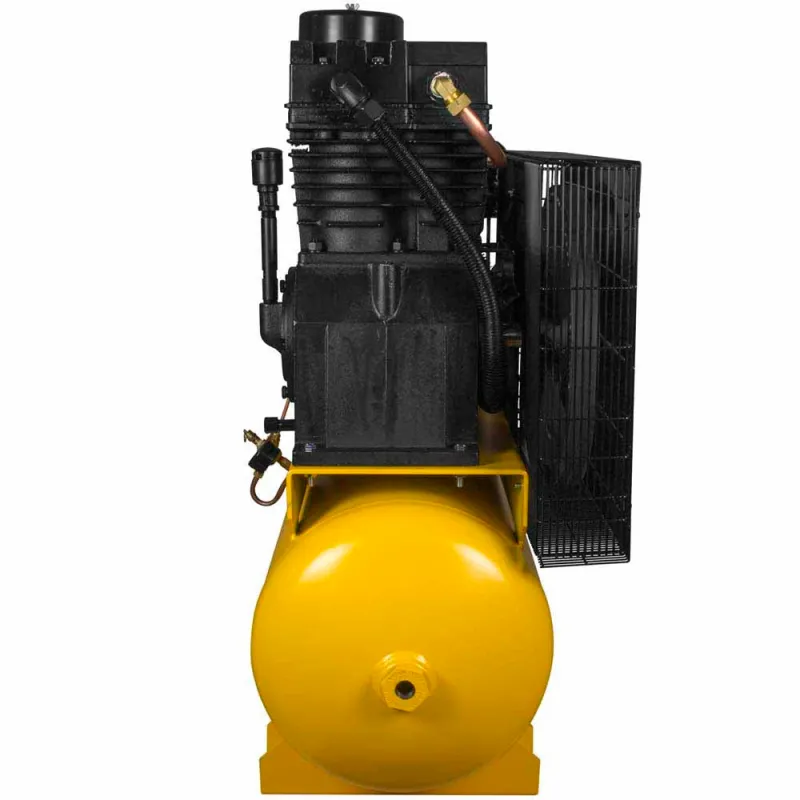

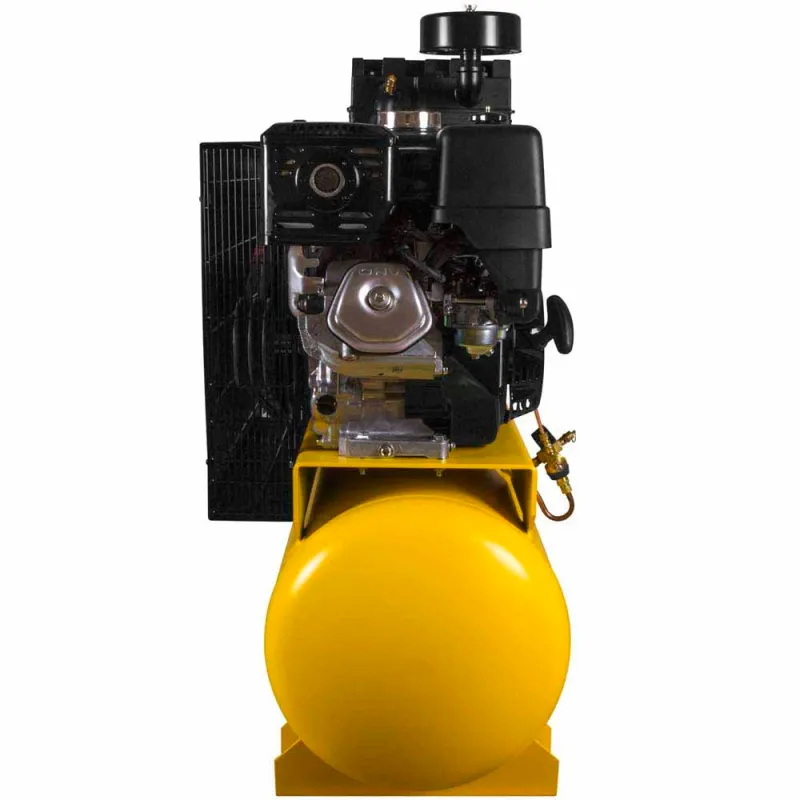

DeWalt DXCMH1393075 30 Gal. 2-Stage Portable Gas-Powered Truck Mount Air Compressor
DeWalt DXCMH1393075 Description
This air compressor is engineered with an overall rugged functionality. This design utilizes a reliable, electric start Honda GX390 OHV gas engine for increased efficiency, optimal power transfer. It is EPA and CARB approved and features an automatic low-oil shutdown function. Manufactured for industrial performance, this 30 gal. 2-stage cast iron industrial air compressor delivers a maximum of 22.0-CFM at 175 PSI, providing enough power to operate more than one air tool or device at a time. The pump is crafted with a patented piston design, a cast iron precision bored cylinder head with a set of patented asymmetrical deep-groove directional cooling fins and a patented cast iron flywheel design. Merged together, those features provide a cooler running pump. This compressor is engineered as a truck mount style unit with ASME Certification and includes a uniquely-designed metal belt guard that improves compressor pump cooling by as much as 60 degrees over other belt guard designs.
DeWalt DXCMH1393075 Includes
- (1) Air Compressor
DeWalt DXCMH1393075 Features
- Features a reliable electric start Honda GX390 OHV gas engine
- Offers a 390-CC engine with a rate of 24.0-CFM at 100 psi or 22.0-CFM at 175 psi
- Includes a patented piston design a cast iron precision bored cylinder head and patented asymmetrical deep-grove directional cooling fins
- Features a patented cast iron flywheel design
- Includes a uniquely-designed metal belt guard that improves cooling by as much as 60 degrees F
- Application Use: Air Brushing, Blow Cleaning, Bolting, Brad Nailing, Finish Nailing, Framing Nailing, Stapling, Wrenching
DeWalt DXCMH1393075 Specifications
| MAX PSI: | 175 PSI |
| Warranty: | 1 Year Limited |
| HP: | 13hp |
| SCFM @ 40 PSI: | 24.0 SCFM |
| SCFM @ 90 PSI: | 22.0 SCFM |
| Power Source: | Gas |
| Tank Style: | Horizontal |
| Oil lube: | Yes |
| Portable or Stationary: | Stationary |
| Tank Capacity: | 30 Gallon |
| Compressor Type: | Contractor |
| Stage: | Two |
| Decibal Rating: | 75 dBa |
