DeWalt DWF83PL 21 Degree Plastic Round Head Framing Nailer
DeWalt DWF83PL Features
- Industrial grade design for high speed & high volume framing applications
- Lightweight with enhanced ergonomics and balance for comfort and control
- recoil dampening engine system to minimize recoil

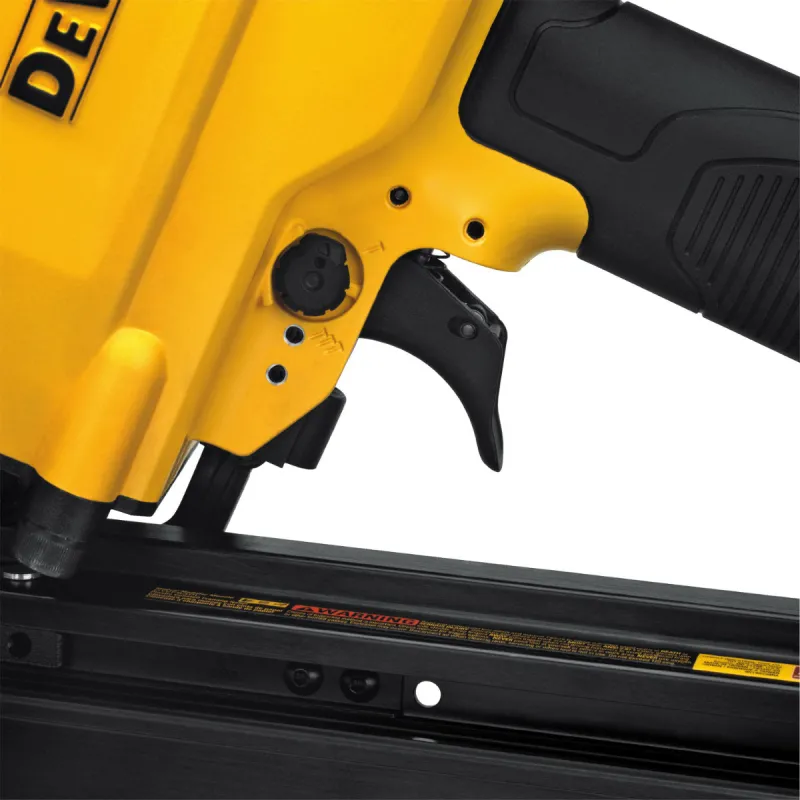

- Tool free Features: depth-of-drive adjustment for precise setting of fasteners and selectable trigger for bump or sequential actuation mode
- Adjustable rafter hook
DeWalt DWF83PL Specifications
| Belt / Rafter Hook | True |
| Fastener Type / Gauge | 21 Degree Plastic |
| Collation Type | Plastic |
| Depth Adjustment | Tool Free |
| Exhaust | Fixed |
| Fastener Diameter Range | .113″ to .148″ |
| Length | 2″ to 3-1/4″ |
| Firing / Acutation Mode | Tool Free Selectable Trigger |
| Jam Clearance | Yes |
| Magazine Angle | 21 Degree |
| Magazine Capacity | 50 |
| Magazine Loading | Top Load |
| Nail Diameter | .113″ to .148″ |
| Operating Pressure | 70 – 120 psi |
| Grip | Overmold |
| Power Source | Pneumatic |
| Tool Height | 12.5″ |
| Tool Length | 21.5″ |
| Tool Width | 4.95″ |
