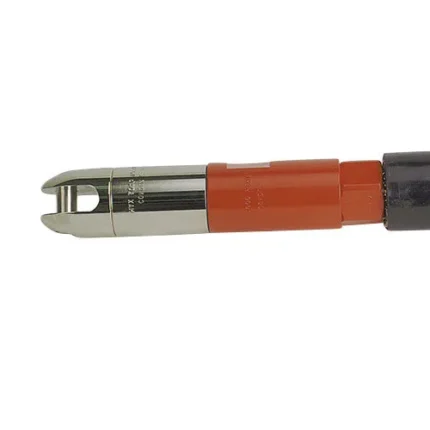

Condux 08960720 2.00″ Swivel Head Innerduct Pulling Eye
Condux 08960720 Description
The Innerduct Pulling Eye is a hybrid tool that combines features from standard innerduct pulling eyes and Condux swivels. A swivel head prevents twisting and binding of the innerduct as it is installed. It eliminates the need for a separate swivel on each pulling eye when installing single innerducts into individual conduits or multiple innerducts into a single conduit. Its short length is an advantage on tight bends compared to using a separate swivel and pulling eye. Easily installed using a 13?8″ deep socket or adjustable wrench. NOTE: To determine correct pulling eye size, obtain the actual innerduct inside diameter (I.D.). The I.D. measurement must be greater than dimension A and smaller than dimension B.
Condux 08960720 Includes
- (1) 2.00″ Swivel Head Innerduct Pulling Eye
Condux 08960720 Specifications
| Part Number | 08960720 |
| Nominal Size | 2.00 in. (51 mm) |
| Innerduct ID Range A – B (in.) | 1.93 in. – 2.12 in. |
| Innerduct ID Range A – B (mm) | 49 mm- 54 mm |
| Max OD C | 2.44 in. (62 mm) |
| Hole Diameter D | .44 in. (11 mm) |
| Slot Width E | .56 in. (14 mm) |
| Slot Depth F | 1.31 in. (33 mm) |
| Pin Diameter G | .44 in. (11 mm) |
| Pin Center H | .56 in. (14 mm) |
| Replacement Clevis Pin Part Number | 08081036 |
