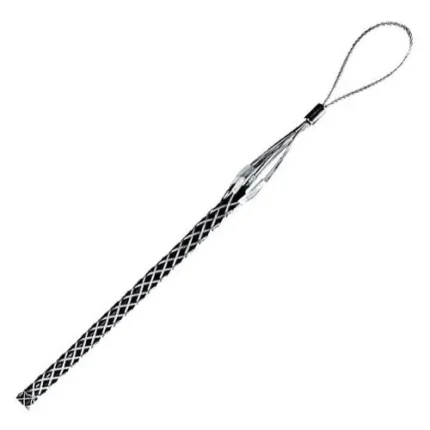

Condux 08643529 .64″ – .87″ Cable Dia. Flexible Eye Fiber Optic Grip
Condux 08643529 Description
Double/Single weave mesh, galvanized steel for outside plant cable. Used for the installation of fiber optic communication lines either underground, overhead, through conduit or through enclosures. They will fit single cables or cable bundles, are easily installed on the cable and are reusable.
Condux 08643529 Includes
- (1) .64″ – .87″ Cable Dia. Flexible Eye Fiber Optic Grip
Condux 08643529 Specifications
| Part Number | 08643529 |
| Description | 033-29-1005 |
| Cable Diameter Range | .64–.87 in. (16–22 mm) |
| Approximate Breaking Strength | 4,700 lbs (20,906 N) |

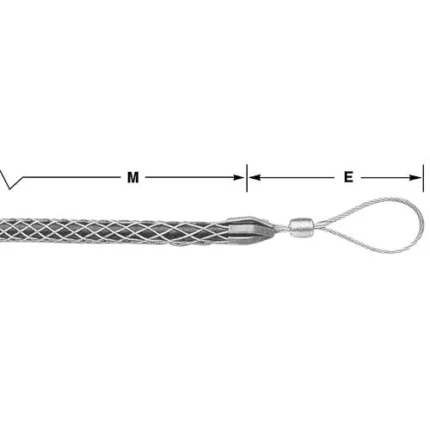

| Eye Length (E) | 6 1?2 in. (165 mm) |
| Mesh length at nominal diameter (M) | 27 in. (686 mm) |
| D | 1.3 in. (33 mm) |
