Condux 08641949 1.50″ – 1.74″ Dia. Multiple Strength Grip – Flexible Eye
Condux 08641949 Description
Multiple Strength Pulling Grips are designed for pulling ACSR, aluminum or copper bare conductor, ground wires, messenger strands, wire rope and insulated cables. They are ideal for overhead transmission and distribution line stringing where moderate loading is anticipated. They are economical tools used for attaching conductors to pulling lines and double socking for conductor-to-conductor connections.
Condux 08641949 Includes
- (1) 1.50″ – 1.74″ Dia. Multiple Strength Grip – Flexible Eye
Condux 08641949 Specifications
| Part Number | 08641949 |
| Description | 033-02-054 |
| Color | Red |
| Cable Diameter Range | 1.50 – 1.74 in. (38 – 44 mm) |
| Approximate Breaking Strength | 30,600 lbs (136,109 N) |

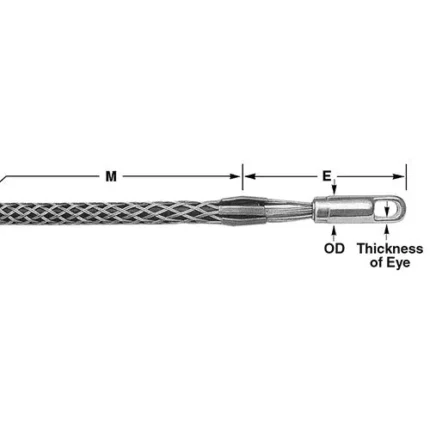

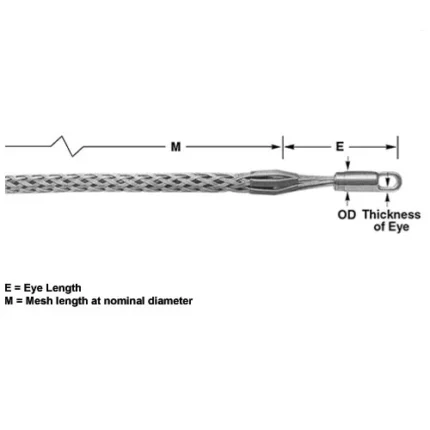

| Eye Length (E) | 12 in. (305 mm) |
| Mesh Length at Nominal Diameter (M) | 60 in. (1,524 mm) |
| Cable Diameter (A) | 1?2 in. (13 mm) |
