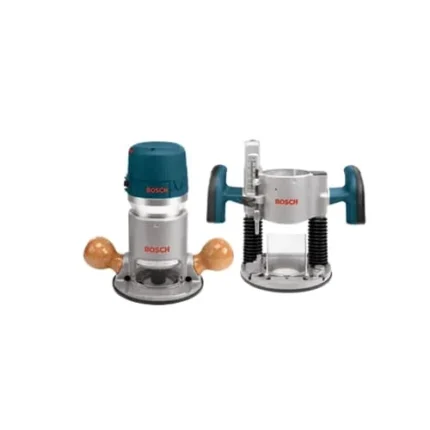

Bosch 1617EVS 2.25 HP Electronic Fixed-Base Router

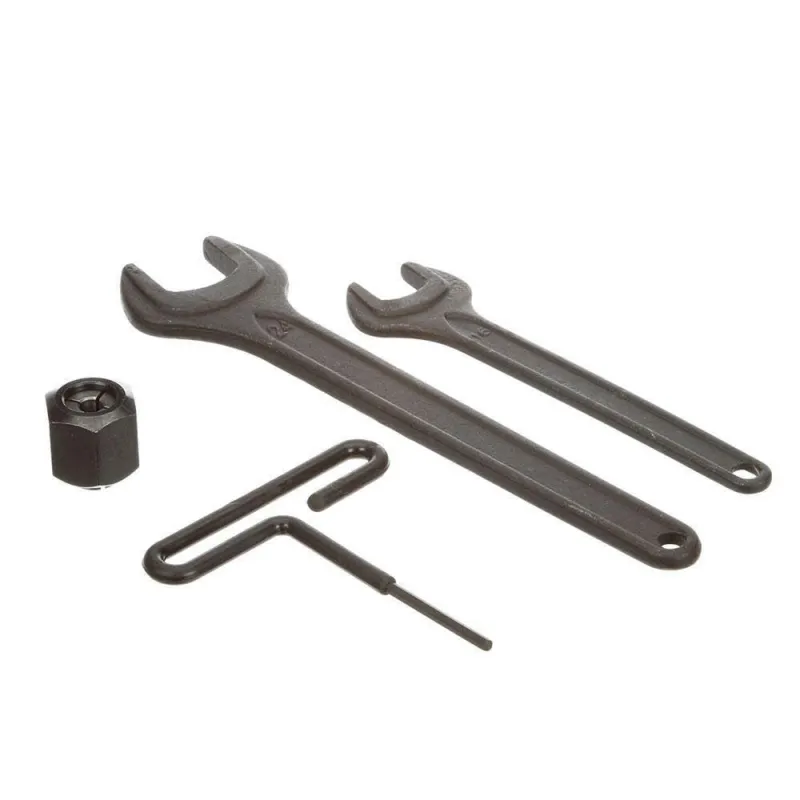

INCLUDES:
• (1) 1/4″ S. R. Collet Chuck
• (1) 1/2″ S. R. Collet Chuck
• (1) 16mm Shaft Wrench
• (1) Collet Nut Wrench
• (1) Chip Shield
• (1) Fixed Base
• (1) T-Handle Hex Height Adjustment Wrench
• (3) 10-24 Screws for Table Mounting
FEATURES:
• Bosch 2.25-HP electronic fixed-base router includes: 1/4 and 1/2-inch collet chucks, collet nut wrench and 16-mm shaft wrench
• It also comes with a fixed base, chip shield, T-handle hex height adjustment wrench and three 10-24 table mounting screws
• 12-Amp motor is ideal for professional jobs
• No-load speeds up to 25,000 rpm increase precision
• Control dial lets you adjust speed based on material
• Constant Response circuitry prevents overloads and maintains even speed
• Fine bit-depth adjustment for ultra-precise settings
• Rounded handles ensure extra comfort
• Dust-sealed power switch protects motor housing
SPECIFICATIONS:
• Amperage: 12
• Base Diameter: 6″
• Base Opening: 3-3/4″
• Collet Capacity: 1/4″, 3/8″, 1/2″, 8 mm
• Fixed-Base Depth Range: 1-5/8″
• No Load RPM: 8000-25000
• Voltage: 120V
• Subbase Opening: 2″
• Dust Collection: No
• Variable Speed: Yes
The Bosch 1617EVS 2.25 HP Electronic Fixed-Base Router has the power to get results, with a 12 Amp motor and adjustable speed settings. The variable-speed dial allows the operator to set the optimal speed. Constant Response Circuitry, the router will maintain a constant speed throughout the cut, resulting in clean, accurate product. Users can glide along the intended cutline using dovetail fixtures, templates, jigs and other guidance devices. The Bosch Precision Centering Design allows the bit to be centered with the sub-base or optional template guides.
