BDS CS Unitec MAB 155 Ultra Compact Horizontal Magnetic Drill | 1-1/2″ Dia. Hole Cutting Capacity
CS Unitec MAB 155 Description

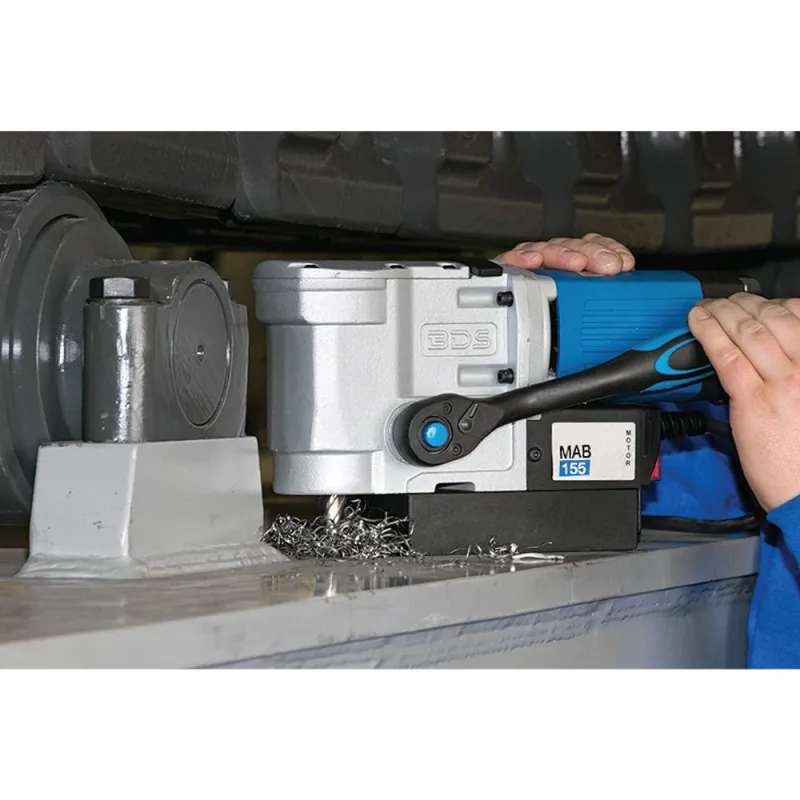

The MAB 155 – ultra compact right-angle magnetic drill with horizontal motor mount for drilling in tight spaces. Drills up to 1-1/2 inch diameter, ultra compact only 7-1/8″ high. Ratchet style handle can be mounted on either side, rear mounted controls for easy access = Easy Drilling in tight spaces.
CS Unitec MAB 155 Includes
- (1) MAB 155
- (1) Carrying Case
- (1) Safety Strap
- (1) Operating manual
- (1) Warranty Certificate
- (1) Ratchet Handle
- (2) Pilot/Ejector Pin
- (2) Hex Keys
- (1) 3/4″ Weldon Tool Holder, Affixed
CS Unitec MAB 155 Features
- Ultra compact at only 7-1/8″ high
- Ratchet-style advancing mechanism for work in spaces with limited clearance
- Advancing lever can be mounted on either left or right side
- Accepts cutters with a 3/4″ weldon shank up to 1-1/2″ Dia and 1-1/2″ Depth
- Internal cable routing
- Simple, ergonomic arrangement of controls for one-handed operation
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
CS Unitec MAB 155 Specifications
| Max Annular Cutter Diameter | 1-1/2″ |
| Motor | 9.25 Amp / 110 V motor |
| Stroke | 1-1/2″ |
| Speed | 460 RPM |
| Weight | 29 lbs. |
| Tool Holder(s) | 3/4″ Weldon Chuck |
| Special Feature(s) | Low Profile, Integrated Cable Routing, Electronic Safety Shutoff |
| Dimensions | 7-1/8″ H X 13-5/16″ L x 4-3/4″W |
| Magnetic Base Dimensions | 6-5/8″ L x 3-1/3″ W |
| Magnetic Force (1″ Thick Plate) | 2640 lbs |
