BDS CS Unitec MAB 1300 V Automatic Magnetic Drill | 6″ Dia. Capacity, 12″ Stroke| Variable Speed through 4-Gears, Reversible Tap up to 1-5/8″ Dia., Variable Torque, Reversible Motor, Power Assist
CS Unitec MAB 1300 V Description

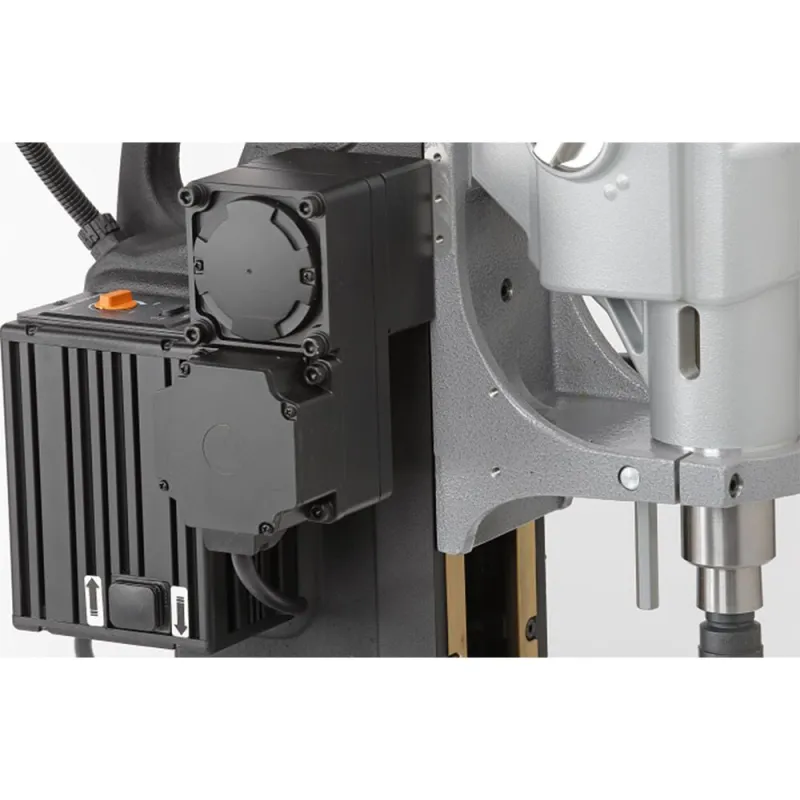

The MAB 1300 V magnetic drill features an automatic feed mechanism with power retraction, a game changer in magnetic drilling, this magnetic drill will drill the hole for you, extend annular cutter life and reduce the chance of cutter breakage. Get more holes drilled per hour, more holes drilled per annular cutter, save time and money! With any magnetic drill the majority of cost will come from annular cutters and cutting tools, improving cutting tool life can pay for a magnetic drill many times over. Automatic feed and feed rate control add improved chip flow and reduce the chance of annular cutter breakage, a costly concern on any large drilling job.
For large capacity drilling in steel the MAB 1300 V magnetic drill has the largest hole cutting capacity of an automatic magnetic drill in the industry – 6” diameter with annular cutters*.
The MAB 1300 V can be used in either manual or automatic mode. The 1300 V’s powerful 20 Amp/110 Volt double-insulated, reversible motor is ideal for drilling structural steel and other metals. Designed for continuous use, the 4-speed oilbath gearbox is suitable for applications requiring high power. With the MAB 1300 V’s 12” stroke, other capabilities include large-hole tapping up to 1-5/8” diameter; twist drilling up to 1-3/4”, countersinking up to 3” and reaming up to 2”. The MAB 1300 V has a 1-1/4” weldon arbor with an adapter for 3/4” weldon shanks.
The high-density, three-coil magnet has a holding strength of up to 23,600 pounds, providing the pulling power required for heavy-duty drilling. The unit includes an integrated automatic cooling/lubrication system to increase the life of the annular cutters by reducing friction and wear.
*Annular cutter drilling capacity 6” diameter up to 1” thick in carbon steel – Use TCT cutters for large diameters
CS Unitec MAB 1300 V Includes
- (1) MAB 1300 V
- (1) Carrying Case w/ wheels
- (1) Safety Strap
- (1) Operating manual
- (1) Warranty Certificate
- (1) Coolant bottle
- (4) Pilot/Ejector Pin
- (2) Hex Keys
- (1) 1-1/4″ Weldon Chuck w/ internal Lubrication, MT4
- (1) Arbor adapter to 3/4″ Weldon
CS Unitec MAB 1300 V Features
- Automatic feed & Retraction, a game changer in magnetic drilling, this magnetic drill will cut the hole for you!
- Maintain optimal feed rate/ pressure for longer cutter life: More holes drilled per annular cutter and save time! Reduce cutter breakage!
- 6″ diameter hole cutting capacity – Largest hole cutting capacity in the industry*
- Professional-grade, variable speed & torque through 4 gears amazing versatility
- Reversible: Tap up to 1-5/8″, Ream, and CounterSink
- CoolMag™: reduces the power of the magnets when the drill motor is not active. Therefore, the mag drill won’t build up heat.
- SafeMag™: An LED indicator on the switch panel warns you of insufficient magnetic force (Red Light) or tells you if the correct force is present (Green Light).
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
- Automatic internal lubrication
- Morse Taper 4 to Weldon Tool Holder
- Made in Germany
CS Unitec MAB 1300 V Specifications
| Max Annular Cutter Diameter | 6″* |
| Max Twist Drill Diameter | 1-3/4″ |
| Max Tapping Diameter | 1-5/8″ |
| Max Countersinking & Reaming | 3″/ 2″ |
| Speed | 30-80/50-120/130-350/210-500 RPM |
| Motor | 20 Amp / 110 Volt |
| Stroke | 12″ |
| Weight | 112 lbs |
| Tool Holder(s) | 1-1/4″ Weldon Chuck, Adapter to 3/4″ Weldon Chuck |
| Special Feature(s) | Automatic Feed, Large Drilling Capacity, Reversible, Variable Speed, Variable Torque, Quick Change Tool Holder, CoolMag, Safemag Electronic Safety Shutoff |
| Spindle | Morse Taper 4 |
