Baileigh Industrial BA9-1004638 Straight Sheet Metal Brake HB-12014
Baileigh Industrial 1004638 Description
With a welded steel frame, this manual sheet metal bender is strong enough to bend 14 gauge mild steel across its full length of 10 feet (120”). The HB-12014 will last for years in any shop. Recommended for fabrication shops that need to bend full sheet metal panels
Baileigh Industrial 1004638 Includes
- (1) Straight Sheet Metal Brake
Baileigh Industrial 1004638 Features
- This industrial sheet metal bender has a maximum bend angle of 135°.
- 10 foot sheet metal brake made using only the highest-quality materials.

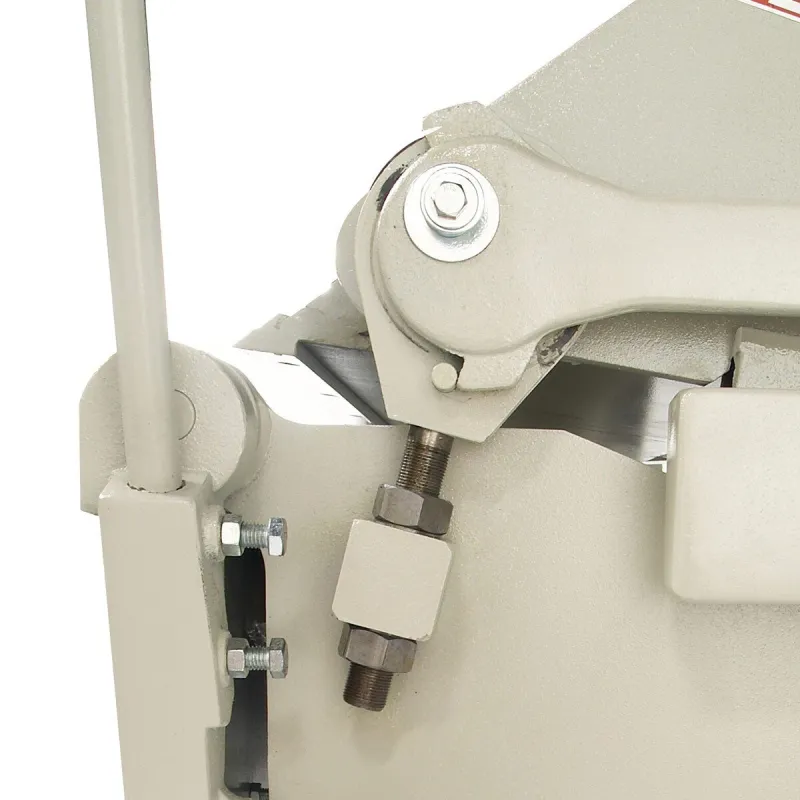

- Machined bending leaf pivots ride in precision bushings, allowing for better bend tolerances and minimizing operator fatigue.
- 2 massive counterweights on the bending apron reduce the effort of bending at maximum capacity.
- 1-piece bending blade, machined to perfection, achieves tight bend radiuses.
- Top beam depth adjusts to fit different material thickness.

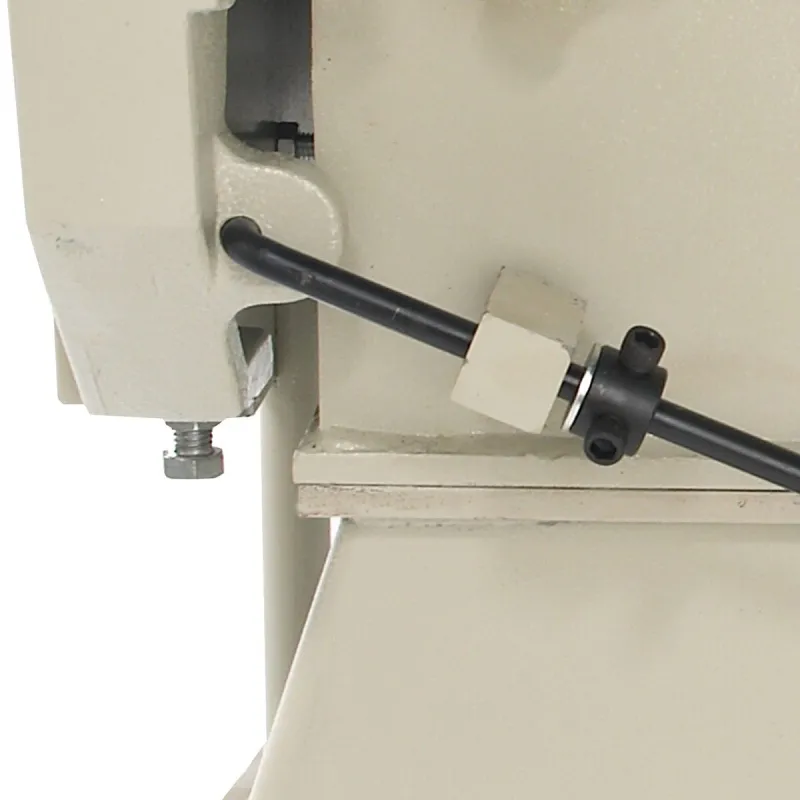

- Comes standard with stop rod to ensure repeatability for production runs.
- Thick, fully-welded steel plate frame maintains accuracy and keeps the machine from buckling at full capacity.
- Baileigh Industrial covers this 10 foot sheet metal brake with a 1-year parts warranty.
Baileigh Industrial 1004638 Specifications
| Min Reverse Bend | .625″ |
| Thickness (SS) | 14 Gauge (18 Gauge) |
| Capacity | 144″ |
| Beam Adjustment | 1″ |
| Bend Angle | 0 – 135° |
| Power | Manual |
| Length | 120” |
| Shipping Dimensions | 145″ x 33″ x 42″ |
| Country of Origin | Taiwan |
