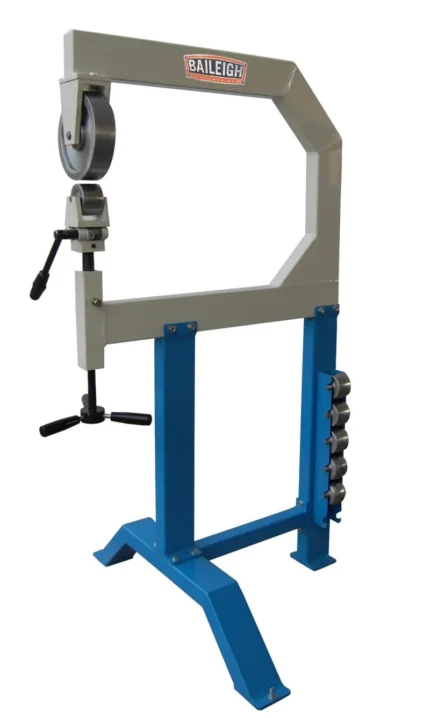

Baileigh Industrial BA9-1004189 English Wheel EW-40
Baileigh Industrial 1004189 Description
Not all English wheels are the same. A 37 ¾” throat depth and box tubing frame make our EW-40 stand out from competing models. We include 9 bottom anvils and 3 upper wheels. The EW-40 is a ridged english wheel with a throat depth of 37-3/4″. It uses 5”x 5” x .250” box tubing for the frame work. This frame is fully welded for even less flex when rolling at full capacity. The EW-40 is rated to form up to 16 gauge mild steel, giving the fabricating shop years of quality metal shaping and forming abilities. Recommended for restoration or bodywork on autos, planes, cycles much more.
Baileigh Industrial 1004189 Includes
- (1) English Wheel
Baileigh Industrial 1004189 Features
- 16 gauge mild steel capacity.
- 37 ¾” throat depth can handle almost any project.
- Comes with 3 upper wheels (6” x 2.75”).

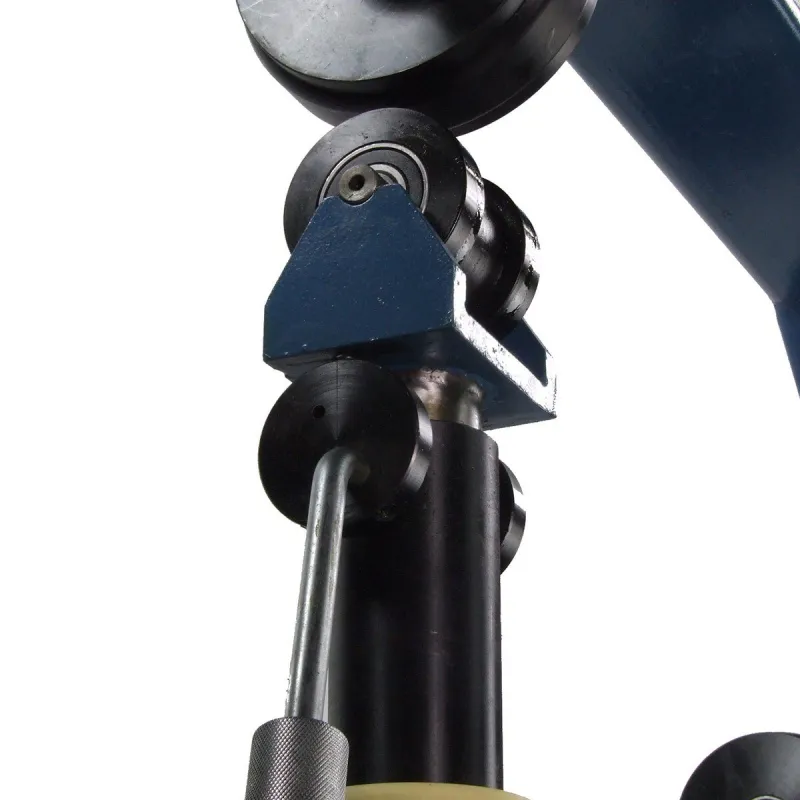

- 9 hardened bottom anvils: ?”, ½”, and ¾” edge radii, 6” crown radius, 2 flat rolls, 5/16” x ¼” step roll, 1½ ” and ?” round bead rolls.
- You can roll beads as well as form metal on this English wheel.
- All upper wheels and lower anvils use sealed bearings.

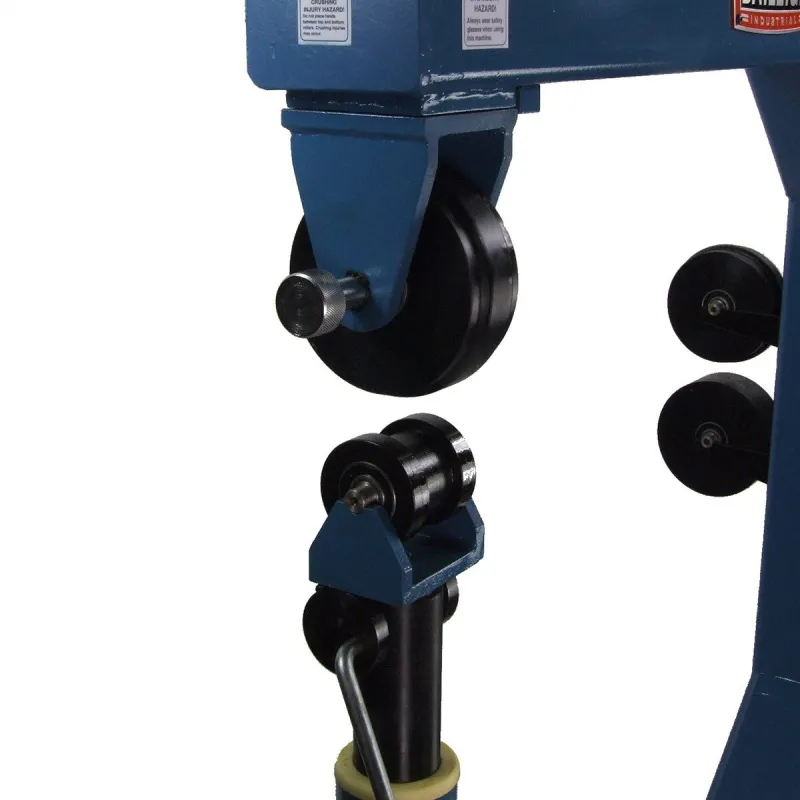

- Swivel head lets you either push material directly into the throat or at a 90° to it.
- Quick-release cam allows you to release the panel without changing tension.
- Adjust the tension via the kick tensioner, made of real rubber.
- Fully welded 5” x 5” x .250” box tubing framework prevents flex when rolling at full capacity.
- Tooling holder on the side of the machine gives you a convenient place to put your rolls.
- Covered by a 1-year parts warranty.
Baileigh Industrial 1004189 Specifications
| Mild Steel Capacity | 16 Gauge |
| Throat Depth | 37-3/4″ |
| Aluminum Capacity | 14 Gauge |
| Lower Die Radius | 1.85″, 2.165″, 4.85, 40″ |
| Power | Manual |
| Top Wheel Dimensions | 6” x 2-1/4″ |
| Shipping Dimensions | 67″ x 48″ x 14″ |
| Country of Origin | China |
