Baileigh Industrial BA9-1001680 Metal Cutting Band Saw BS-712M
Baileigh Industrial 1001680 Description
Need a compact saw that can handle a variety of jobs? You can use this machine as a horizontal band saw for general cutoffs or as a vertical band saw for precise shape cutting. This compact band saw can be run in the traditional, horizontal position for general cut offs, or in the vertical position by just lifting the bow and locking it in place. Now it’s ready for precise shape cutting. The head and bow of the BS-712M are made from heavy duty cast iron that’s been precisely machined to exacting tolerances. This machining ensures proper alignment for any cutting process. A pair of adjustable guides attached to the heavy duty head, along with eight sealed ball bearings help align the blade, and increase the life of the blade. Add a chip removal brush, blade and flood coolant system to the BS-712M manual band saw, and you have one great package.
Baileigh Industrial 1001680 Includes
- (1) Band Saw
Baileigh Industrial 1001680 Features
- 1 hp motor runs on 120-volt single-phase power, so you can use it almost anywhere.
- Cutting capacity of 7” OD round and 7’ x 10.25” rectangle at 90°.
- Miters up to 45°; simply loosen the vise and rotate it to the proper angle.
- Cast iron saw head and bow minimize vibrations, ensuring clean, accurate cuts.

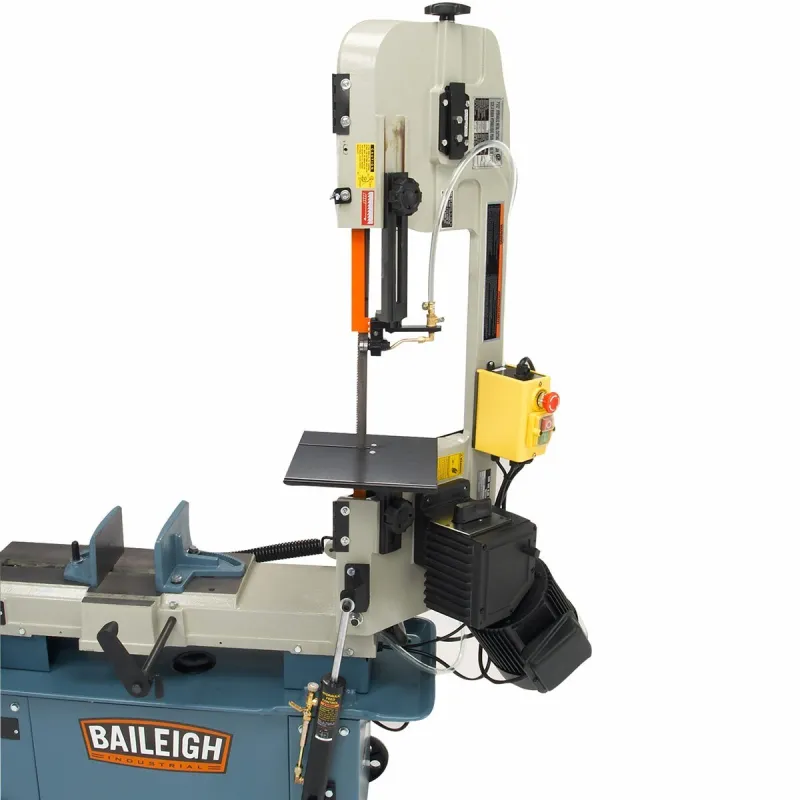

- You can operate the saw in horizontal or vertical position (just lift the bow and lock it in place).
- Adjustable blade guides attached to the saw head, with 8 sealed ball bearings, help align the blade and increase its lifetime of use.
- Head and bow are made from heavy cast iron, precisely machined to exacting tolerances, maintaining proper alignment during the cutting process.
- Electro-welded steel plate framework makes the machine sturdy and strong enough to cut at maximum capacity without trouble.
- Moves on wheels for portability.
- Includes chip removal brush and flood coolant system to keep the saw running smoothly for many years.
- We back this portable metal cutting band saw with a 1-year parts warranty.
Baileigh Industrial 1001680 Specifications
| Dimensions | 60″ x 44″ x 48″ |
| Return | Manual |
| Miter Adjustment | Vise |
| Miter Angle | 0 – 45° |
| Motor | 1 HP |
| Capacity Rectangular 90 x 45 x 45L | 7″ x 10.23″ x 4.72″ x 4.13″ |
| Capacity Round 90° x 45° | 7″ x 4.33″ |
| Table Height | 22″ |
| Blade Guide | Roller |
| Blade Size | .75″ x .035″ x 92.91″ |
