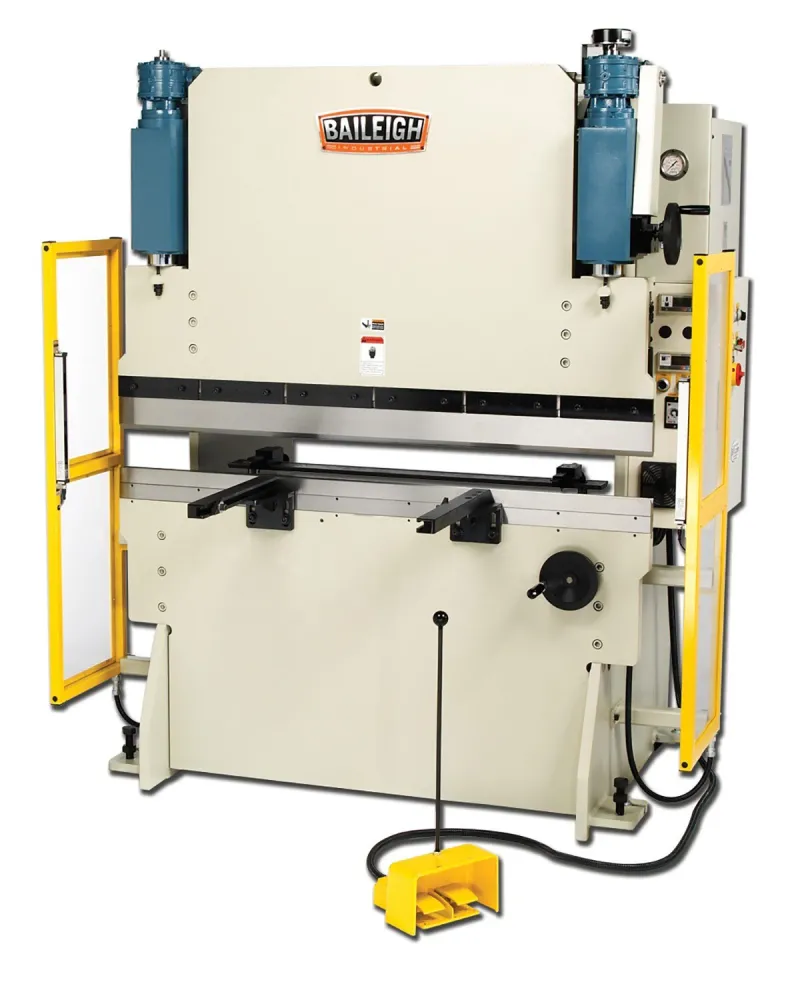

Baileigh Industrial BA9-1000803 Press Brake BP-3360NC
Baileigh Industrial 1000803 Description
Baileigh Industrial’s BP-3360 NC hydraulic brake press has a very heavy electro welded frame of solid plate steel making this a very rigid machine that runs so smoothly in production. To aid with rigidity the beam is stabilized by 3 axis bearings sliding on several extremely hardened stabilization tracks and is further stabilized by a unique parallel mechanism. All of this attention to detail assures high accuracy between both dies at any position of the stroke. This precise sheet metal bender is a two axis NC machine where positioning of the upper beam and back gauge can be fine tuned and whose position is via encoder controls. The top beam uses two precise hydraulic cylinders that are coupled to an encoder to measure their exact position. The position of the downward stroke is illuminated on the DRO (digital readout). This means you can accurately fine tune a sheet metal bend and make it perfect every time. The motorized back gauge rides on a solid ball screw trolley mechanism and its position is being read by an encoder whose displaying its whereabouts on a separate DRO. Fine tuning of both the beam and back gauge are by separate hand wheels. This means is that this is an extremely accurate hydraulic brake press across the entire width of the beam. This machine can be run in three modes. The first is the jog mode which is exclusively meant for set up. The second is manual where the operator may wish to have more control over the decent and return of the beam in production. The final is automatic which is for full production. Standard on all Baileigh Industrial brake presses, this one comes with foot pedal controls, front material rests, safety guards with a 6 light safety curtain, and a set of hardened single-Vee tooling.
Baileigh Industrial 1000803 Includes
- (1) Press Brake
Baileigh Industrial 1000803 Features
- Produces up to 33 tons of pressure.
- Bends sheet metal up to 61” wide.
- Maximum capacity of .078” thick sheet metal across the machine’s full width.
- 3 hp main motor requires 220-volt 3-phase power.
- Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.
- 2 encoder-controlled hydraulic cylinders move the top beam.
- Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.
- It takes a just few seconds to change the top beam pressureand the top position of the stroke (for more or less travel).
- You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape.
- 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.
- Foot pedal brings the stroke up and down, leaving your hands free to position the material.
- Motorized back gauge rides on a solid ball screw trolley mechanism.
- Back gauge encoder shows its position on its own DRO.
- Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine.
- Heavy electrowelded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years.
- Rugged 3,300-pound construction supports the hydraulic pressure, so the machine stays strong at full capacity.
- Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.
- Includes a set of hardened single-Vee American tooling.
